爱普生SG-770SCD石英贴片晶振,X1G0023510026,SPXO差分晶振

频率：62.500000 MHz

尺寸：7.0x5.0mm

爱普生SG-770SCD石英贴片晶振,X1G0023510026,SPXO差分晶振，日本进口晶振，EPSON爱普生株式会社，差分晶体型号：SG-770SCD，编码为：X1G0023510026，频率为：62.500000 MHz，小体积晶振尺寸：7.0x5.0mm，六脚贴片晶振，LV-PECL输出差分晶体振荡器，有源晶振，石英晶振，SPXO石英晶体振荡器，该差分晶振能够输出差分信号的晶振，输出差分信号使用2种相位彼此完全相反的信号，从而消除了共模噪声，并产生一个更高性能的系统。具有超小型，轻薄型，低抖动，低功耗，低电源电压，低耗能，低相位噪声，低电平等特点。广泛应用于通讯设备、机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、SATA，SAS，光纤通信，10G以太网及各种频率控制设备上。

订购热线：0755-27838351

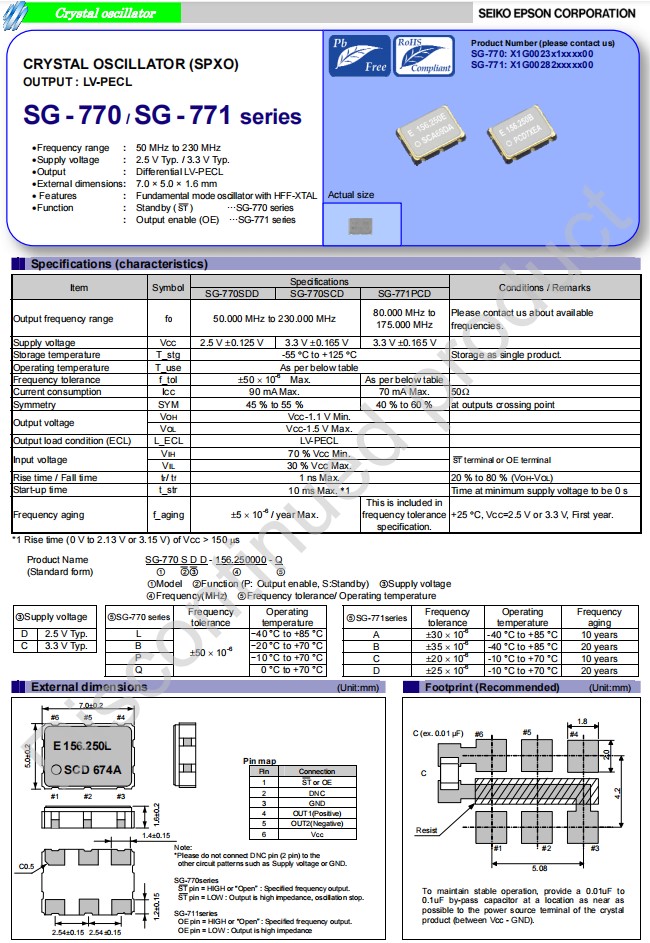

爱普生SG-770SCD石英贴片晶振,X1G0023510026,SPXO差分晶振 ，参数表

Item	Symbol	Specifications			Conditions / Remarks
		SG-770SDD	SG-770SCD	SG-771PCD
				80.000 MHz to 175.000 MHz	Please contact us about available frequencies.
Output frequency range	f0	50.000 MHz to 230.000 MHz
Supply voltage	VCC	2.5 V ±0.125 V	3.3 V ±0.165 V	3.3 V ±0.165 V
Storage temperature	T_stg	-55 °C to +125 °C			Storage as single product.
Operating temperature	T_use	As per below table
Frequency tolerance	f_tol	±50 ´ 10-6 Max.		As per below table
Current consumption	ICC	90 mA Max.		70 mA Max.	50W
Symmetry	SYM	45 % to 55 %		40 % to 60 %	at outputs crossing point
Output voltage	VOH	VCC-1.1 V Min.
	VOL	VCC-1.5 V Max.
Output load condition (ECL)	L_ECL	LV-PECL
Input voltage	VIH	70 % VCC Min.			ST terminal or OE terminal
	VIL	30 % VCC Max.
Rise time / Fall time	tr/ tf	1 ns Max.			20 % to 80 % (VOH-VOL)
Start-up time	t_str	10 ms Max. *1			Time at minimum supply voltage to be 0 s
Frequency aging	f_aging	±5 ´ 10-6 / year Max.		This is included in frequency tolerance specification.	+25 °C, VCC=2.5 V or 3.3 V, First year.

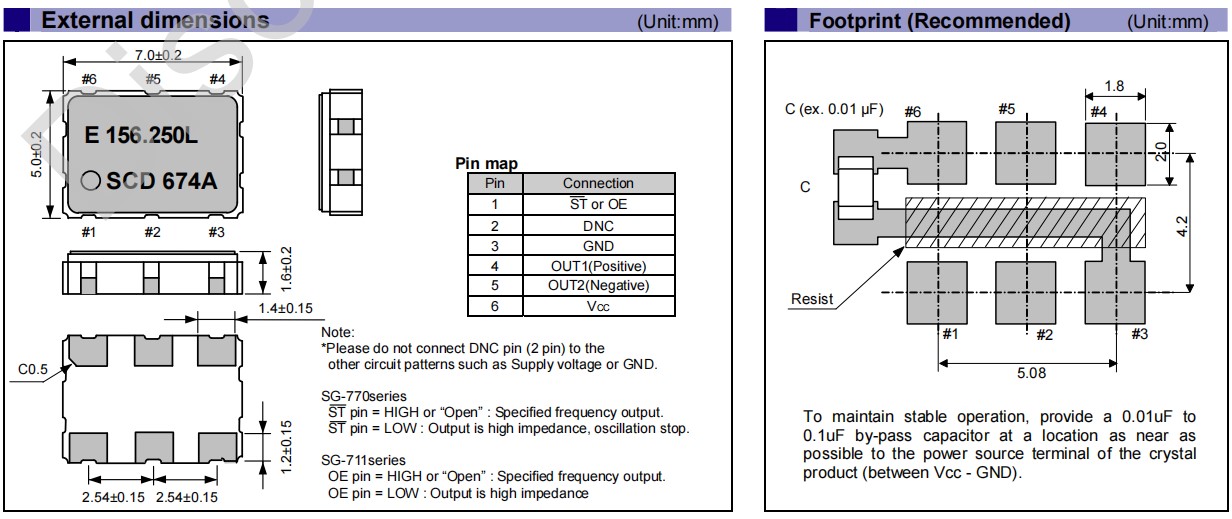

爱普生SG-770SCD石英贴片晶振,X1G0023510026,SPXO差分晶振，尺寸图

爱普生SG-770SCD石英贴片晶振,X1G0023510026,SPXO差分晶振

差分晶振近年来逐渐出现在我们的视线中，以及越来越多的电子工程师会更青睐差分晶振。随着信息化的发展，差分晶振高性能、低功耗、低噪声的优点，使其成为很多设计适合的方案。但仍有不少电子工程师对差分晶振选型上存在误区以及盲点。差分晶振与常规晶振不同，差分晶振有不同的输出信号，LVPECL，LVDS，HCSL是差分晶振通用的输出信号。

晶振料号	品牌	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0023510013	EPSON晶振	SG-770SCD	156.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	0 to 70 °C
X1G0023510014	EPSON晶振	SG-770SCD	187.500000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	0 to 70 °C
X1G0023510019	EPSON晶振	SG-770SCD	125.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510026	EPSON晶振	SG-770SCD	62.500000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510027	EPSON晶振	SG-770SCD	133.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510028	EPSON晶振	SG-770SCD	106.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510029	EPSON晶振	SG-770SCD	155.520000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510032	EPSON晶振	SG-770SCD	133.330000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510033	EPSON晶振	SG-770SCD	148.500000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510035	EPSON晶振	SG-770SCD	125.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	0 to 70 °C
X1G0023510044	EPSON晶振	SG-770SCD	155.520000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	0 to 70 °C
X1G0023510053	EPSON晶振	SG-770SCD	50.000000 MHz	有源晶体	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510122	EPSON晶振	SG-770SCD	80.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510123	EPSON晶振	SG-770SCD	133.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510125	EPSON晶振	SG-770SCD	150.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510126	EPSON晶振	SG-770SCD	50.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-20 to 70 °C
X1G0023510128	EPSON晶振	SG-770SCD	80.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-20 to 70 °C
X1G0023510129	EPSON晶振	SG-770SCD	53.125000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510130	EPSON晶振	SG-770SCD	133.333300 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510131	EPSON晶振	SG-770SCD	75.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510132	EPSON晶振	SG-770SCD	98.304000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510808	EPSON晶振	SG-770SCD	200.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
