SG-8504CA差分晶振,X1G0050210005,EPSON高频晶体6G网络晶振

频率：106.250000 MHz

尺寸：7.0x5.0x1.7mm

SG-8504CA差分晶振,X1G0050210005,EPSON高频晶体6G网络晶振，日本进口晶振，EPSON爱普生晶振，型号SG-8504CA，编码为：X1G0050210005，频率为：106.250000 MHz，小体积晶振尺寸：7.0x5.0x1.7mm，8脚贴片晶振，LV-PECL输出差分晶体振荡器，双元或四元可选择的可编程晶体振荡器，具有用户指定的两（FSEL）或四个（FSEL0，FSEL1）启动频率，高频基音晶体，低抖动PLL技术，可用的现场振荡器程序员“SG-Writer∥”，石英晶体振荡器，高性能有源晶体，具有超小型，轻薄型，低抖动，低功耗，低耗能，低电源电压，低损耗，低相位噪声，低电平等特点，能够轻易识别网络信号以及精确的处理双极信号。应用于：OTN、BTS、测试仪器，通讯设备、机顶盒、无线网络，蓝牙模块，光端机，安防设备、路由器/交换机、仪器仪表、光纤通信，10G以太网，消费电子等应用。

订购热线：0755-27838351

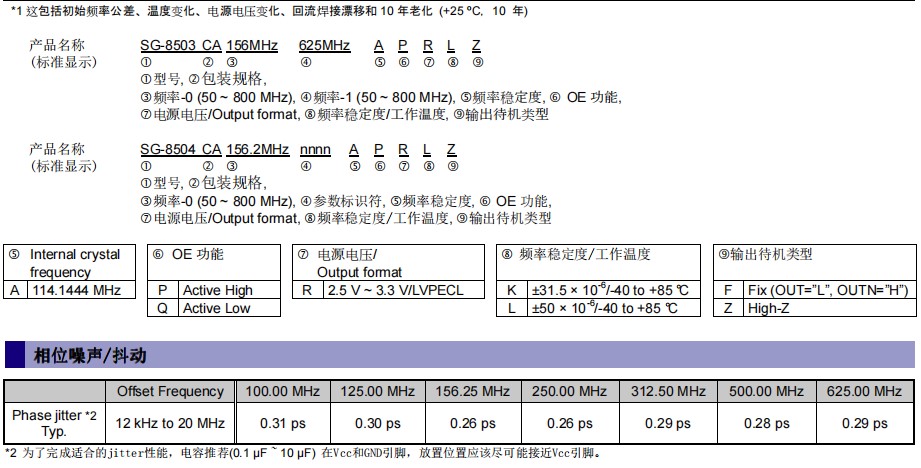

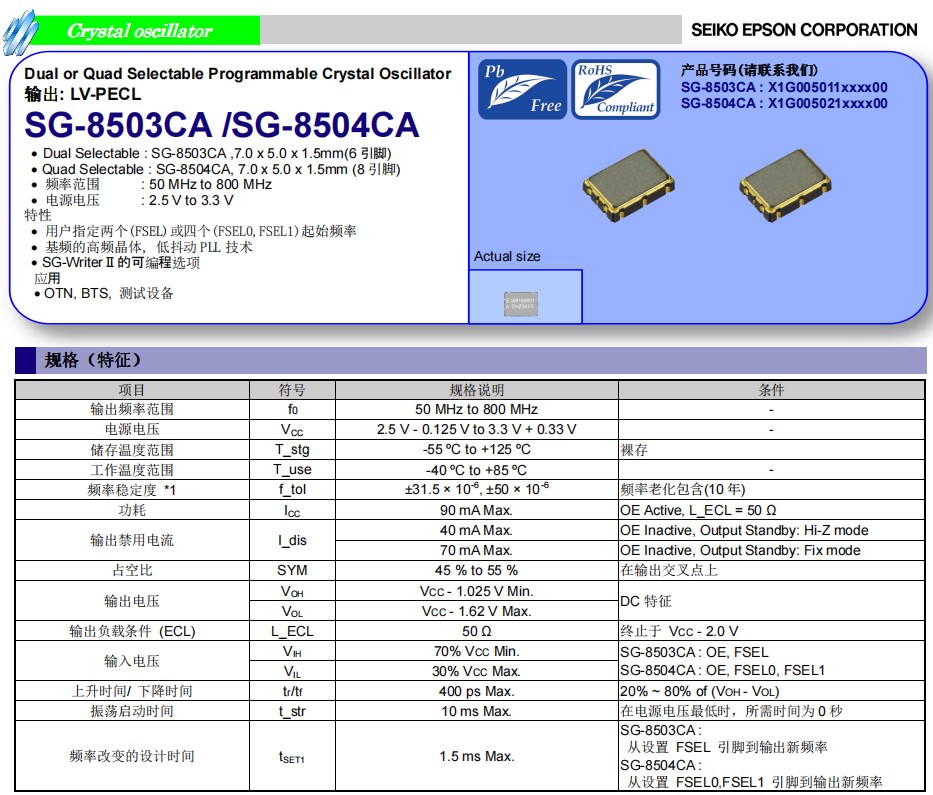

SG-8504CA差分晶振,X1G0050210005,EPSON高频晶体6G网络晶振，参数表

Item	Symbol	SG-8504CA	Conditions / Remarks
Output frequency range	f0	106.250000 MHz	-
Supply voltage	VCC	2.5V-0.125V to 3.3V +0.33V	-
Storage temperature	T_stg	-55°C to +125°C	Store as bare product after packing
Operating temperature	T_use	-40°C to +85°C	-
Frequency tolerance *1	f_tol	±31.5 × 10-6	Customized Product (Option)
Frequency tolerance *1	f_tol	±50 × 10-6
Current consumption	ICC	90mA Max.	OE Active, L_ECL=50 Ω
Disable current	I_dis	40mA Max.	OE Inactive, Output Standby: Hi-Z mode
Disable current	I_dis	70mA Max.	OE Inactive, Output Standby: Fix mode
Symmetry	SYM	45% to 55%	At outputs crossing point
Output voltage	VOH	VCC - 1.025 V Min.	DC characteristics
Output voltage	VOL	VCC - 1.62 V Max.	DC characteristics
Output load condition	L_ECL	50 Ω	Termination to VCC - 2.0 V
Input voltage	VIH	70% VCC Min.	OE, FSEL
Input voltage	VIL	30% VCC Max.	OE, FSEL
Rise time / Fall time	tr / tf	400ps Max.	20% ~ 80%
Rise time / Fall time	tr / tf	400ps Max.	(VOH -VOL)
Start-up time	t_str	10ms Max.	Time at minimum supply voltage to be 0 s
Setting time for frequency change	TSET1	1.5ms Max.	From setting FSEL0 / FSEL1 pin to output new frequency

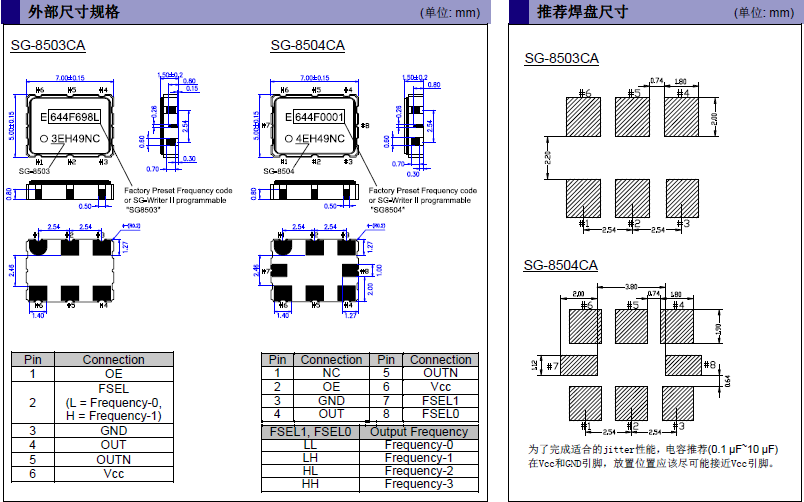

SG-8504CA差分晶振,X1G0050210005,EPSON高频晶体6G网络晶振，尺寸图

SG-8504CA差分晶振,X1G0050210005,EPSON高频晶体6G网络晶振

差分输出晶振具有低电平，低抖动，低功耗等特性。差分晶振作为目前行业中高要求、高技术石英晶体振荡器，具有相位低、损耗低的特点。因此也被称之为"低抖动振荡器，低抖动石英晶振，低相位晶振，低损耗晶振”。

① 能够很容易地识别小信号。

② 对外部电磁干扰(EMI)是高度免疫的。

③ 能够从容精确地处理'双极'信号。

振荡器	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0045110001	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110002	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110003	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110004	SG7050EBN	106.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110007	SG7050EBN	150.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110012	SG7050EBN	156.253906 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110601	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110602	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110603	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0050110003	SG-8503CA	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110004	SG-8503CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110005	SG-8503CA	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050111001	SG-8503CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210003	SG-8504CA	75.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210004	SG-8504CA	62.500000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210005	SG-8504CA	106.250000 MHz	7050晶振	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210006	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210007	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050211001	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050310003	SG-8506CA	622.080000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050311001	SG-8506CA	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1M0001410001	EG-4101CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410002	EG-4101CA	281.333300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410003	EG-4101CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410004	EG-4101CA	698.812300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410007	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410008	EG-4101CA	400.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410010	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410013	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410014	EG-4101CA	644.531200 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410017	EG-4101CA	156.253906 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0003210000	XG-2103CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003210001	XG-2103CA	132.812500 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
