156.250MHz/X1M0004110006/MG7050EAN/7050mm/LV-PECL

频率：156.250MHz

尺寸：7.0x5.0mm

156.250MHz/X1M0004110006/MG7050EAN/7050mm/LV-PECL，日本进口晶振，EPSON爱普生晶振型号：MG7050EAN，编码为：X1M0004110006，频率：156.250MHz，小体积晶振尺寸7.0x5.0mm封装，14脚贴片晶振，石英晶振，有源晶振，石英晶体振荡器，差分输出晶振，本产品是利用锯波谐振器的基本振荡的LV-PECL输出的高频振荡器。这实现了频率为100~700MHz的低抖动和低噪声，具有超小型，轻薄型，低抖动，低功耗，低电源电压，低耗能，低损耗，低相位噪声等特点，振荡器适用于PCI Express等参考时钟。应用于：GbE、光纤通道、SAS、PCI表达，服务器、存储、路由器/交换机、无线网络、OTN等。

订购热线：0755-27838351

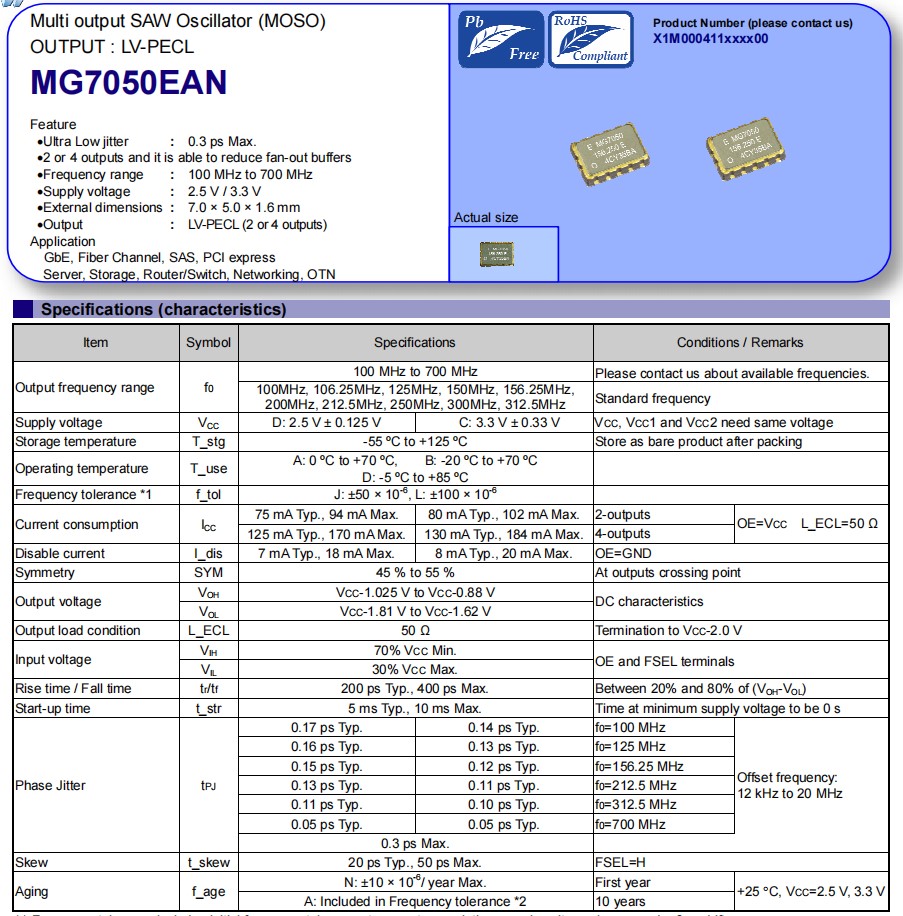

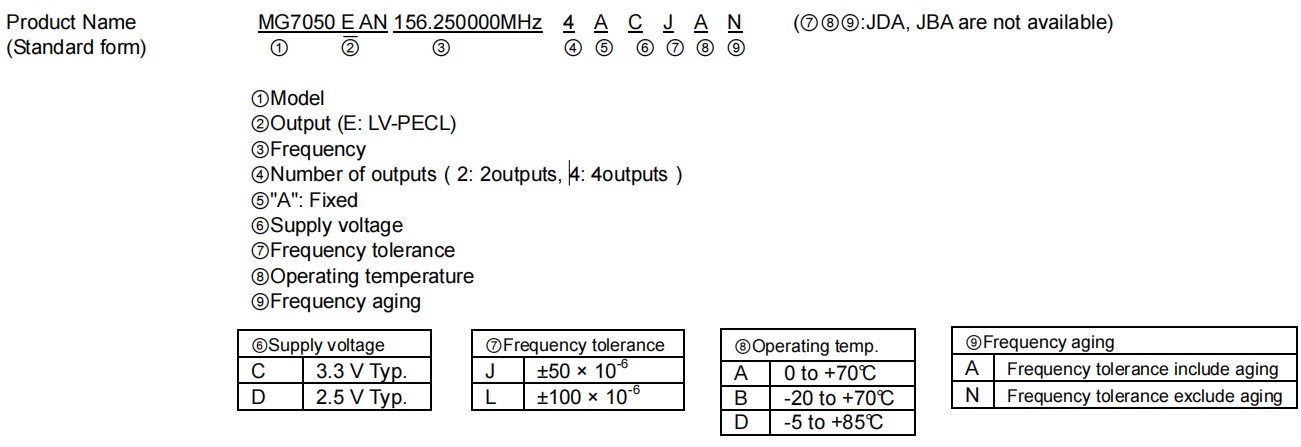

156.250MHz/X1M0004110006/MG7050EAN/7050mm/LV-PECL，参数表

Item	Symbol	MG7050EAN 规格说明		Conditions / Remarks
Output frequency range	f0	100 MHz to 700 MHz		Please contact us about available frequencies.
		100MHz , 106.25MHz , 125MHz , 150MHz		Standard frequency
		156.25MHz , 200MHz , 212.5MHz , 250MHz
		300MHz , 312.5MHz
Supply voltage	VCC	D : 2.5V ± 0.125V	C : 3.3V ± 0.33V	VCC1 and VCC2 need same voltage
Storage temperature	T_stg	-55°C to +125°C		Store as bare product after packing
Operating temperature	T_use	A : 0°C to +70°C
		B : -20°C to +70°C
		D : -5°C to +85°C
Frequency tolerance *1	f_tol	J : ± 50 × 10-6
		L : ±100 × 10-6
Current consumption	ICC	75 mA Typ.,	80 mA Typ.,	2-outputs	OE = VCC
		94 mA Max.	102 mA Max.		L_ECL = 50 Ω
		125 mA Typ.,	130 mA Typ.,	4-outputs
		170 mA Max.	184 mA Max.
Disable current	I_dis	7mA Typ.		OE=GND
		18mA Max.
Symmetry	SYM	45% to 55%		At outputs crossing point
Output voltage	VOH	VCC - 1.025V to VCC - 0.88 V		DC characteristics
	VOL	VCC - 1.81V to VCC - 1.62 V
Output load condition	L_ECL	50 Ω		Termination to VCC - 2.0 V
Input voltage	VIH	70% VCC Min.		OE and FSEL terminals
	VIL	30% VCC Max.
Rise time / Fall time	tr / tf	200 ps Typ., 400 ps Max.		Between 20% and 80% of ( VOH - VOL )
Start-up time	t_str	5 ms Typ. , 10 ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.17 ps Typ.	0.14 ps Typ.	f0 = 100 MHz	Offset frequency:
		0.16 ps Typ.	0.13 ps Typ.	f0 = 125 MHz	12kHz to 20MHz
		0.15 ps Typ.	0.12 ps Typ.	f0 = 156.25 MHz
		0.13 ps Typ.	0.11 ps Typ.	f0 = 212.5 MHz
		0.11 ps Typ.	0.10 ps Typ.	f0 = 312.5 MHz
		0.05 ps Typ.	0.05 ps Typ.	f0 = 700 MHz
		0.3 ps Max.
Skew	t_skew	20ps Typ., 50ps Max.		FSEL = H
Aging	f_aging	N : ± 10 × 10-6 / year Max.		First year	+25°C,
		A : Included in Frequency tolerance *2		10 years	VCC = 2.5V , 3.3V

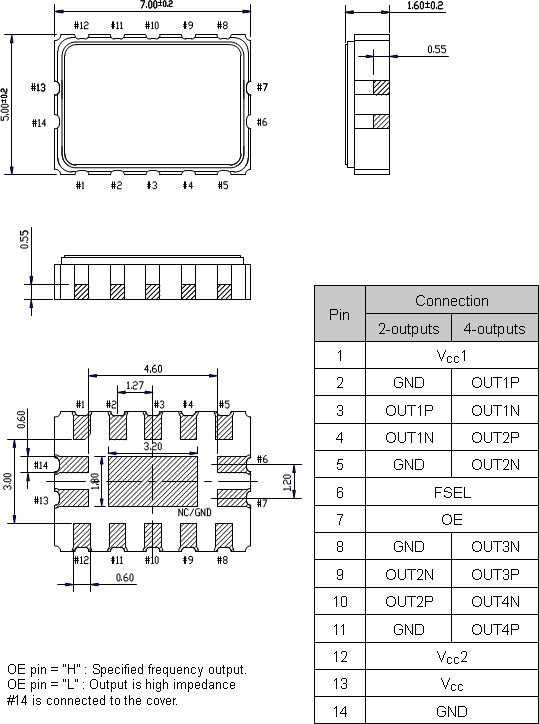

156.250MHz/X1M0004110006/MG7050EAN/7050mm/LV-PECL，尺寸图

晶振料号	型号	频率	尺寸	输出方式	电源电压
X1M0004110002	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110005	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110006	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110007	MG7050EAN	669.325580 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110008	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110009	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110010	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110011	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110012	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110013	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V
X1M0004110014	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110015	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110016	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	有源晶体
X1M0004110017	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110018	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110019	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110020	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V
X1M0004110021	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V
X1M0004110022	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V
X1M0004110023	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110024	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110025	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V
X1M0004110026	MG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
