LVPECL输出六脚贴片晶振,NP2520SA-156.250000Mz-NSC5326B,NDK光通信6G晶振

频率：156.250000MHz

尺寸：2.5x2.0x0.8mm

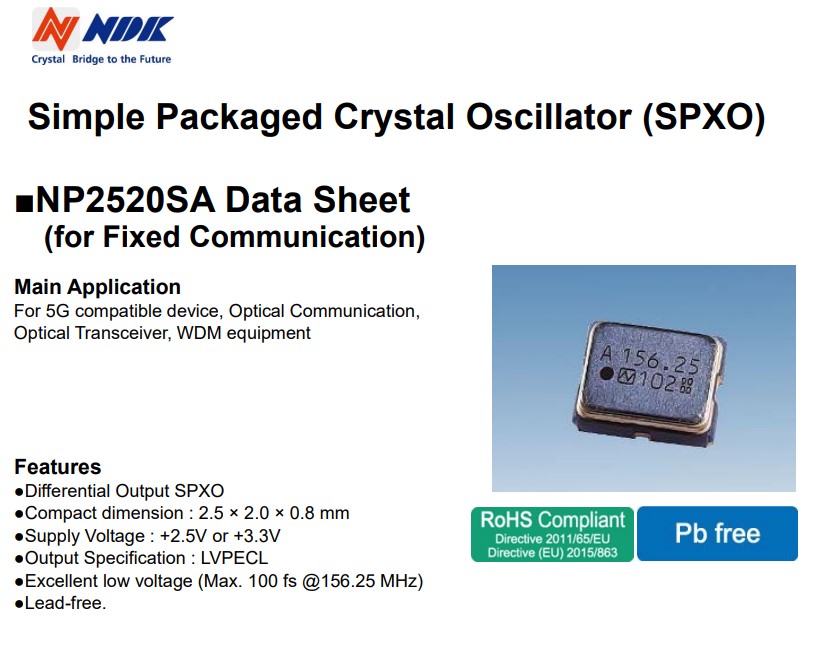

LVPECL输出六脚贴片晶振,NP2520SA-156.250000Mz-NSC5326B,NDK光通信6G晶振，日本进口晶振，NDK晶振，型号为：NP2520SA，编码为：NP2520SA-156.250000Mz-NSC5326B，频率为：156.250000MHz，紧凑尺寸：2.5x2.0x0.8mm，六脚贴片晶振，是一款LV-PECL差分晶体振荡器，SPXO石英晶体振荡器，电源电压：3.3V，出色的低电压(最大值100 fs(156.25MHz)。具有低相位噪声，低抖动，低功耗，低损耗，低电源电压，低电平等特点。使用于产品中能够很容易地识别小信号，能够从容精确地处理'双极'信号，对外部电磁干扰（EMI）是高度免疫的。NP2520SA有源晶振适用于：通信网络，光通信，光收发器、WDM设备，无线网络，蓝牙模块，机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、测试血糖仪应用等。

订购热线：0755-27838351

LVPECL输出六脚贴片晶振,NP2520SA-156.250000Mz-NSC5326B,NDK光通信6G晶振，参数表

Item	Model		NP2520SA
Output Specification			LVPECL
Nominal Frequency Range (MHz)			100 to 170
Standard Frequency Range (MHz)			156.250000
Overall Frequency Tolerance *1			Max. ±50 ×10-6
Operating Temperature Range (°C)			-40 to +85
Supply Voltage [VCC] (V)			+2.5 ± 5 %	+3.3 ± 10 %
Current	Enable (mA)	+25°C	Max. 60 (STAND-BY=VCC or OPEN, RL=50Ω)
Consumption	Stand-by (μA)	+25°C	Max. 30 (STAND-BY=GND)
Output Voltage (V)			VOL: Max. VCC-1.5(DC characteristics)
VOH: Min. VCC-1.1 (DC characteristics)
Rise Time / Fall Time (ns)			Max. 0.5 (20 to 80% Waveform)
Symmetry (%)			45 to 55 (at 50% Waveform)
Output Load (Ω)			50 (Terminated to VCC–2.0V)
Start-up Time (ms)			Max. 10
Phase Jitter (fs)	+3.3V, +25°C		Max.100 (156.25MHz)	(Offset Frequency : 12kHz to 20MHz)
Specification Number			NSC5300A	NSC5300B

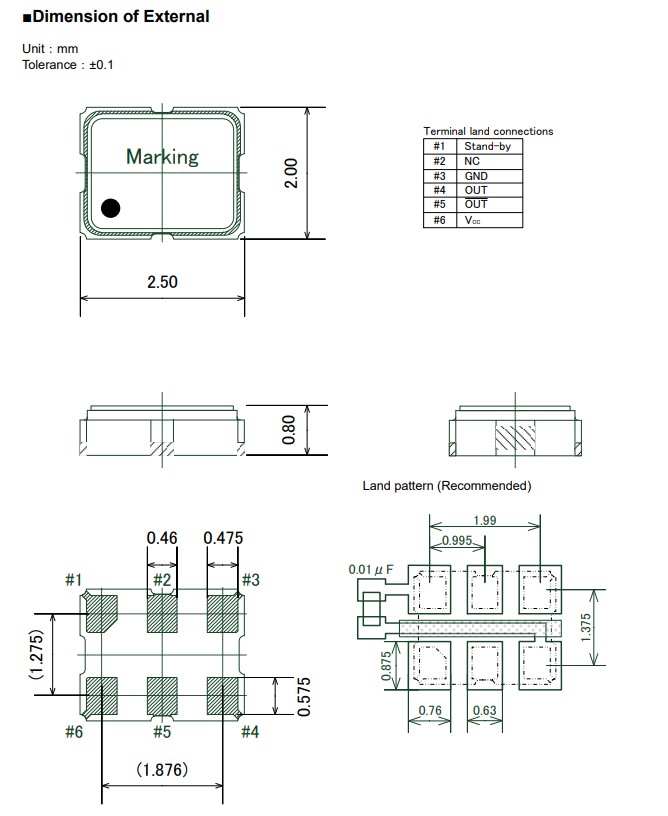

LVPECL输出六脚贴片晶振,NP2520SA-156.250000Mz-NSC5326B,NDK光通信6G晶振，尺寸图
