NDK以太网6G晶振,NP5032SB-148.250MHz-NSC5401C,LVDS低功耗振荡器

当前位置：首页 » 日产晶振 » NDK晶振 » NDK以太网6G晶振,NP5032SB-148.250MHz-NSC5401C,LVDS低功耗振荡器

prevnext

NDK以太网6G晶振,NP5032SB-148.250MHz-NSC5401C,LVDS低功耗振荡器

频率：148.250MHz

尺寸：5.0x3.2x1.2mm

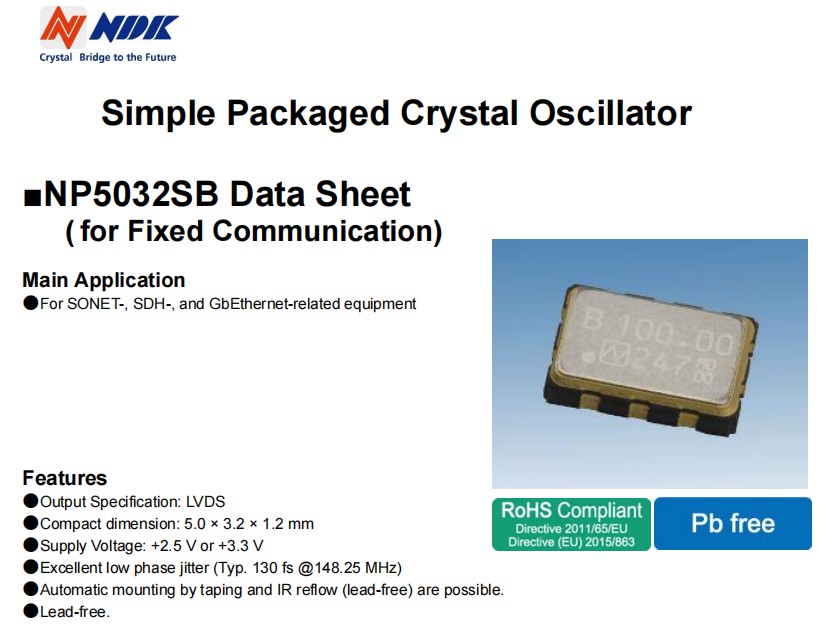

NDK以太网6G晶振,NP5032SB-148.250MHz-NSC5401C,LVDS低功耗振荡器，日本电波生株式会社，NDK晶振型号为：NP5032SB，编码为：NP5032SB-148.250MHz-NSC5401C，频率为：148.250MHz，小体积晶振尺寸为5.0x3.2x1.2mm，有源晶体，LVDS输出差分晶体振荡器，六脚贴片晶振，电源电压2.5V，优秀的低相位抖动(Typ 130 fs @148.25MHz)，自动安装通过胶带和红外回流（无铅）是可能的。具有超小型，轻薄型，低抖动，低功耗，低损耗，低相位噪声，低电源电压，满足产品低消耗电流的特点。NP5032SB振荡器应用于：通讯设备晶振，工业控制，消费电子，智能安防，无线网络，蓝牙模块，物联网，路由器/交换机、仪器仪表，机顶盒，光端机，以太网，安防设备及各种频率控制设备上。

订购热线：0755-27838351

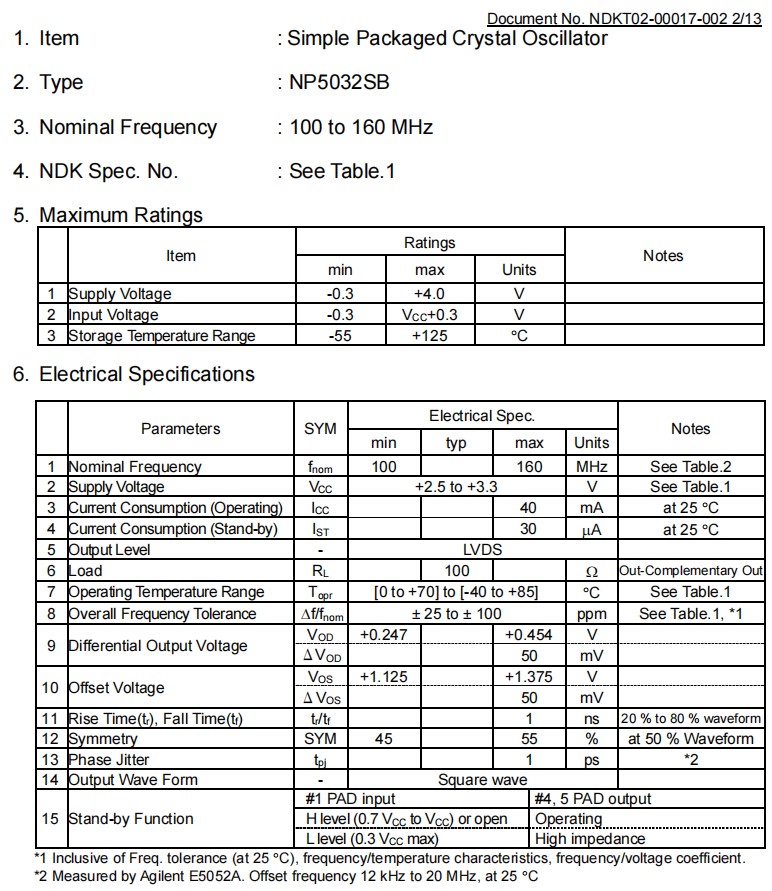

NDK以太网6G晶振,NP5032SB-148.250MHz-NSC5401C,LVDS低功耗振荡器，参数表

Item	Symbol	NP5032SB						Unit
Nominal frequency range	fnom	148.250MHz						MHz
Package size (L×W×H)	-	5.0×3.2×1.2						mm
Supply voltage	Vcc	Typ. +2.5			Typ. +3.3			V
Current consumption	ICC	Max. 40						mA
Stand-by current	IST	Max. 30						μA
Output specification	-	LVDS						-
Load	RL	100						Ω
Storage temperature range	Tstr	55 to +125						℃
Operating temperature range	Topr	0 to +70	0 to +85	-40 to +85	0 to +70	0 to +85	-40 to +85	℃
Overall frequency tolerance	Δf/fnom	Max. ±25	Max. ±50	Max. ±100	Max. ±25	Max. ±50	Max. ±100	ppm
Differential output voltage	VOD	0.247 to 0.454						V
Differential output voltage	△VOD	Max. 50						mV
Offset voltage	VOS	1.125 to 1.375						V
Offset voltage	△VOS	Max. 50						mV
Rise (tr), fall (tf) time (20% to 80% WaveForm)	tr/tf	Max. 1						ns
Symmetry (at 50 % Waveform)	SYM	45 to 55						%
Phase jitter	tpj	Max. 1						ps
Specification number	-	NSC5401A	NSC5401B	NSC5401C	NSC5402A	NSC5402B	NSC5402C	-

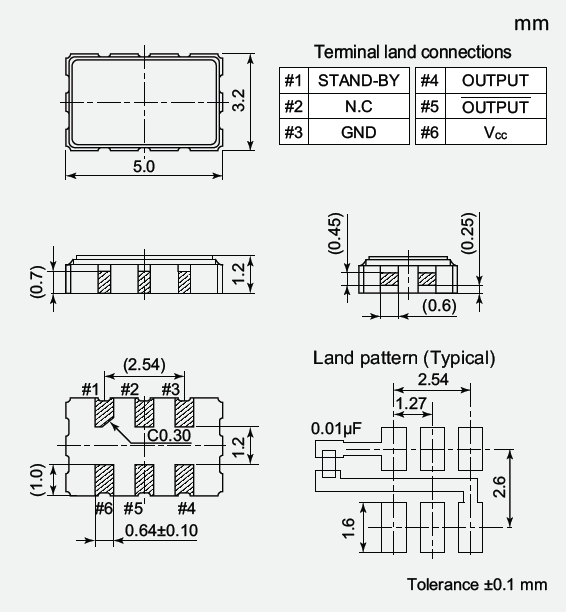

NDK以太网6G晶振,NP5032SB-148.250MHz-NSC5401C,LVDS低功耗振荡器，尺寸图

NDK以太网6G晶振,NP5032SB-148.250MHz-NSC5401C,LVDS低功耗振荡器

LVDS（Low Voltage Differential Signaling)，差分晶体振荡器，它是一种低摆幅的差分信号技术，它使得信号能够在差PCB线对或平衡电缆上以几百的Mbps的速率传输，其低压幅以及低电流驱动输出实现了低噪声以及低功耗。LVDS（Low Voltage Differential Signaling）是一种小振幅差分信号技术，LVDS信号传输一般由三部分组成：差分信号发送器，差分信号互联器，差分信号接收器。
