6G服务器晶振,NV7050SK-644.5313APHDCA,NDK差分晶体振荡器,VCXO压控晶振
频率：644.531300 MHz
尺寸：7.0x5.0mm
6G服务器晶振,NV7050SK-644.5313APHDCA,NDK差分晶体振荡器,VCXO压控晶振，日本进口晶振，NDK贴片晶振NV7050SK，编码为：NV7050SK-644.5313APHDCA，频率：644.531300 MHz，小体积晶振尺寸为7.0x5.0mm，六脚贴片晶振，LV-PECL输出差分晶体振荡器，VCXO压控晶体振荡器，频率控制范围：±50x10-6 ~ ±250x10-6，支持低电源电压：+1.8V、+2.5V、+3.3V，支持窄稳定性：±10x10-6、±20 x10-6。具有低抖动，低功耗，低损耗，低相位噪声，低电源电压，低电平等特点，应用于：基站、gb以太网、光传输设备，服务器，通讯设备晶振，物联网，路由器/交换机、仪器仪表，机顶盒，光端机，光模块，以太网，安防设备及各种频率控制设备上。

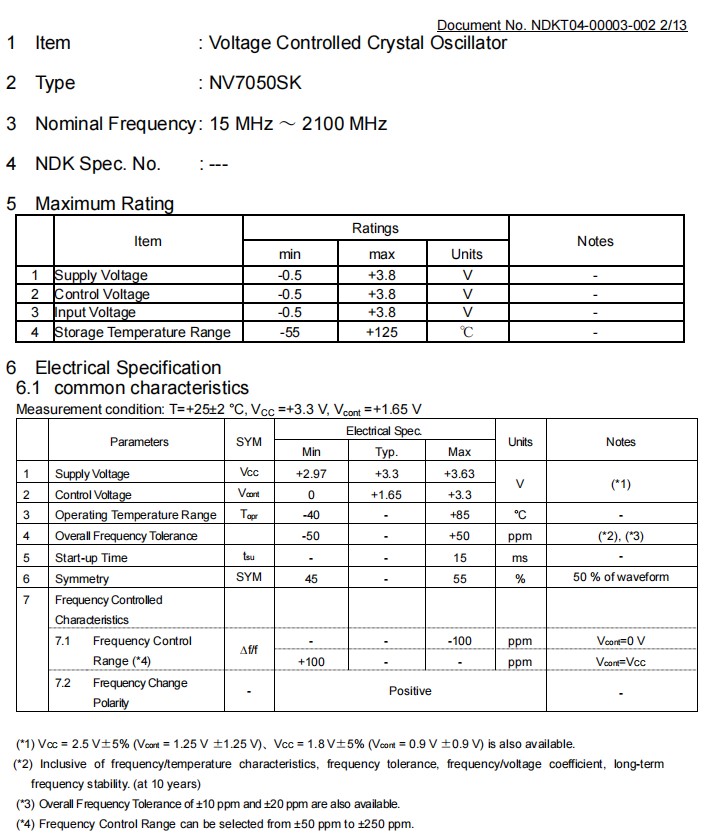

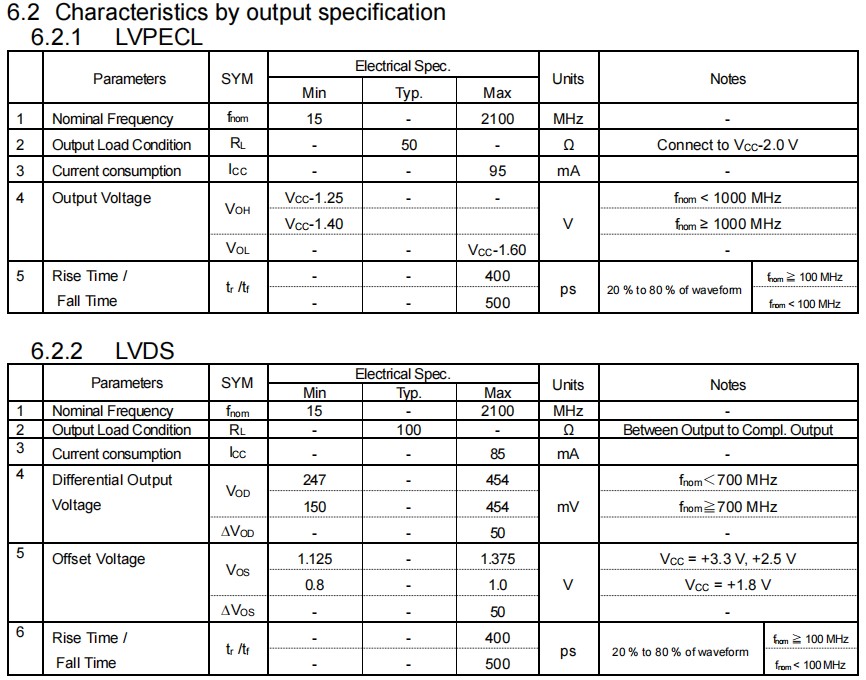

6G服务器晶振,NV7050SK-644.5313APHDCA,NDK差分晶体振荡器,VCXO压控晶振，参数表
Item
Symbol
NV7050SK
Unit
Frequency selection function
-
Single (No selection function)
-
Dual (Select from 2 frequencies)
Quad (Select from 4 frequencies)
Any Rate (Setable desired frequency by I2C)
Nominal frequency range
fnom
15 ≦ f ≦ 2100
MHz
15 ≦ f ≦ 2100
15 ≦ f ≦ 2100
15 ≦ f ≦ 2100
15 ≦ f ≦ 700
15 ≦ f ≦ 200
Package size (L×W×H)
-
7.0×5.0×1.6
mm
Output specification
-
LVPECL
LVDS
CML
HCSL
-
Current consumption
ICC
Max. 95
Max. 85
Max. 80
Max. 100
mA
Output load condition
RL/CL
50Ω (VCC-2.0v)
100Ω
50Ω (VCC)
50Ω
-
Supply voltage
VCC
+1.8V±5%
V
+2.5V±5%
+3.3V±10%
Enable/Disable function
-
Enable High
-
Enable Low
None
Storage temperature range
Tstr
-55 to +125
℃
Operating temperature range
Topr
-40 to +85
℃
Overall frequency tolerance
Δf/fnom
Max. ±10 （High stability）
ppm
Max. ±20 （High stability）
Max. ±50 （Standard）
Start-up time
tsu
Max. 15
ms
Symmetry
SYM
45 to 55
%
Frequency control range
Δf/f
Min.±100 at Vcc=3.3V / Selectable from ±50 to ±250
ppm
Frequency change polarity
-
Positive
-

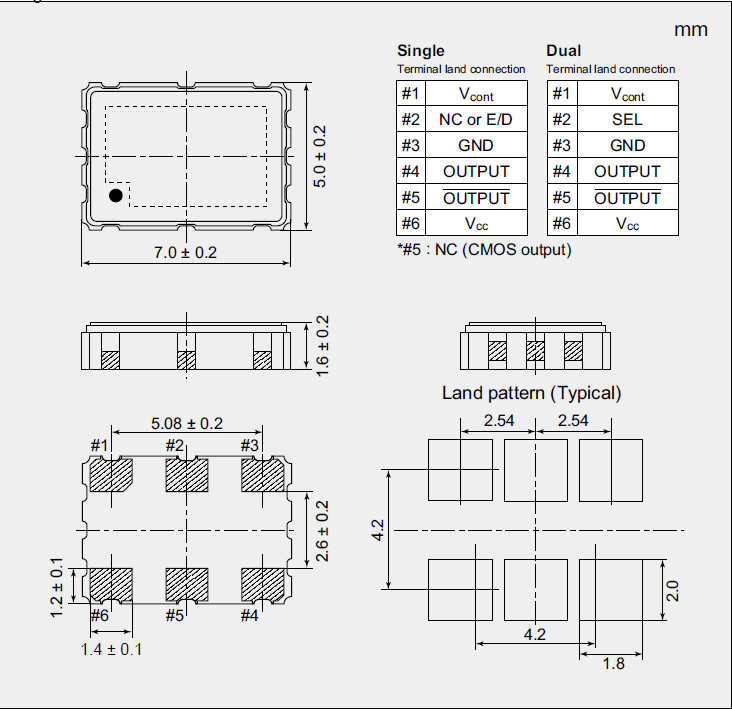

6G服务器晶振,NV7050SK-644.5313APHDCA,NDK差分晶体振荡器,VCXO压控晶振，尺寸图

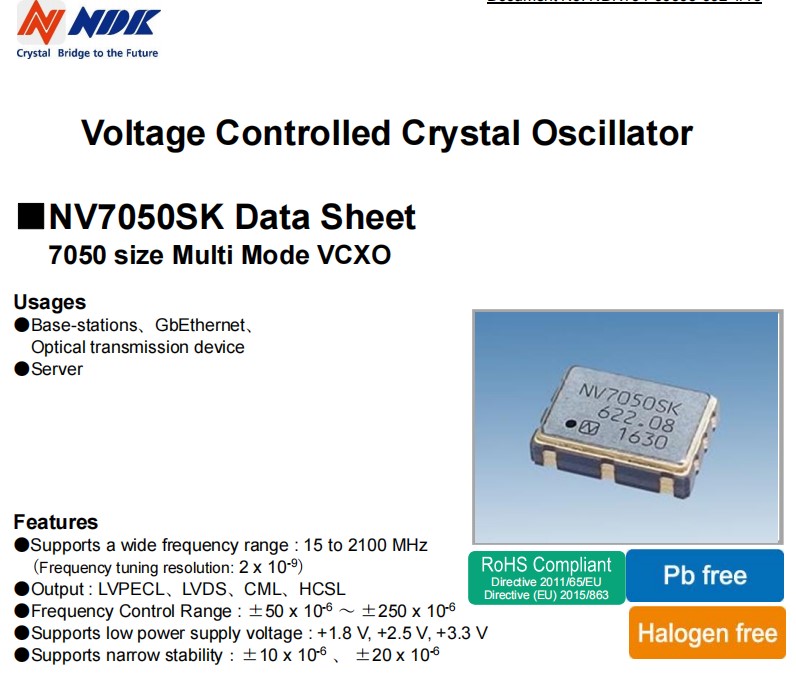

6G服务器晶振,NV7050SK-644.5313APHDCA,NDK差分晶体振荡器,VCXO压控晶振
产品特点：
支持宽频率范围：15MHz至2100MHz
（频率调谐分辨率：2 x 10-9）
输出：LVPECL、LVDS、CML、HCSL差分输出晶振
频率控制范围：±50 x 10-6～±250 x 10-6
支持低电源电压：+1.8V、+2.5V、+3.3V
支持窄稳定性：±10 x 10-6、±20 x 10-6
应用于：
基站、千兆以太网、
光传输装置
服务器
