Si515按摩仪晶振,515ACA250M000BAGR,SkyworksLVPECL晶振

频率：250MHZ

尺寸：5.0x3.2mm

Si515按摩仪晶振,515ACA250M000BAGR,SkyworksLVPECL晶振，尺寸5.0×3.2mm，频率200MHZ，输出逻辑LVPECL，电压3.3V，频率稳定性20ppm，欧美进口晶振，思佳讯差分晶振，Skyworks有源振荡器，LVPECL差分输出晶振，贴片差分晶振，LVPECL差分晶振，VCXO压控晶振，压控差分晶振，六脚差分振荡器，5032mm差分晶振，石英差分振荡器，有源差分晶振，差分晶体振荡器，200MHZ高频差分晶振，高质量差分晶振，高精度差分晶振，低抖动差分晶振，低功耗差分晶振，低相位差分晶振，低电压差分晶振，低耗能差分晶振，按摩仪专用差分晶振，广播视频差分晶振，交换机差分晶振，仪器仪表专用晶振，路由器差分晶振，无线网络差分晶振，小型设备差分晶振，具有低抖动低功耗的特点。

差分晶体产品比较常用于按摩仪，广播视频，交换机，仪器仪表，路由器，无线网络，小型设备等领域。Si515按摩仪晶振,515ACA250M000BAGR,SkyworksLVPECL晶振.

订购热线：0755-27838351

Si515按摩仪晶振,515ACA250M000BAGR,SkyworksLVPECL晶振 参数表

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Supply Voltage	V DD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
Supply Current	IDD	CMOS, 100 MHz, single-ended	—	24	29	mA
		LVDS (output enabled)	—	22	26	mA
		LVPECL (output enabled)	—	42	46	mA
		HCSL (output enabled)	—	44	47	mA
		Tristate (output disabled)	—	—	22	mA
OE “1” Setting	VIH	See Note	0.80 x V DD	—	—	V
OE “0” Setting	VIL	See Note	—	—	0.20 x V DD	V
OE Internal Pull-Up/ Pull-Down Resistor*	RI		—	45	—	kΩ
Operating Temperature	TA		–40	—	85	oC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Control Voltage Range

0.1 x V DD

V DD/2

0.9 x V DD

Control Voltage Tuning Slope
(10 to 90% V DD)

Positive slope,
ordering option

60, 90, 120, 150

ppm/V

Kv Variation

Kv_var

—

±10

Control Voltage Linearity

LVC

BSL

–5

±1

Modulation Bandwidth

—

kHz

Vc Input Impedance

Z VC

—

100

—

kΩ

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

250

MHz

Temperature Stability

TA = –40 to +85 oC

–20

—

+20

ppm

Aging

Frequency drift over 10 year life

—

±8.5

ppm

Minimum Absolute Pull Range

APR

Ordering option

±30, ±50,±80, ±100

ppm

Startup Time

TSU

Minimum V DD to output fre-
quency (FO) within specification

—

Disable Time

FO > 10 MHz

—

µs

FO< 10 MHz

µs

Enable Time

FO > 10 MHz

—

µs

FO< 10 MHz

µs

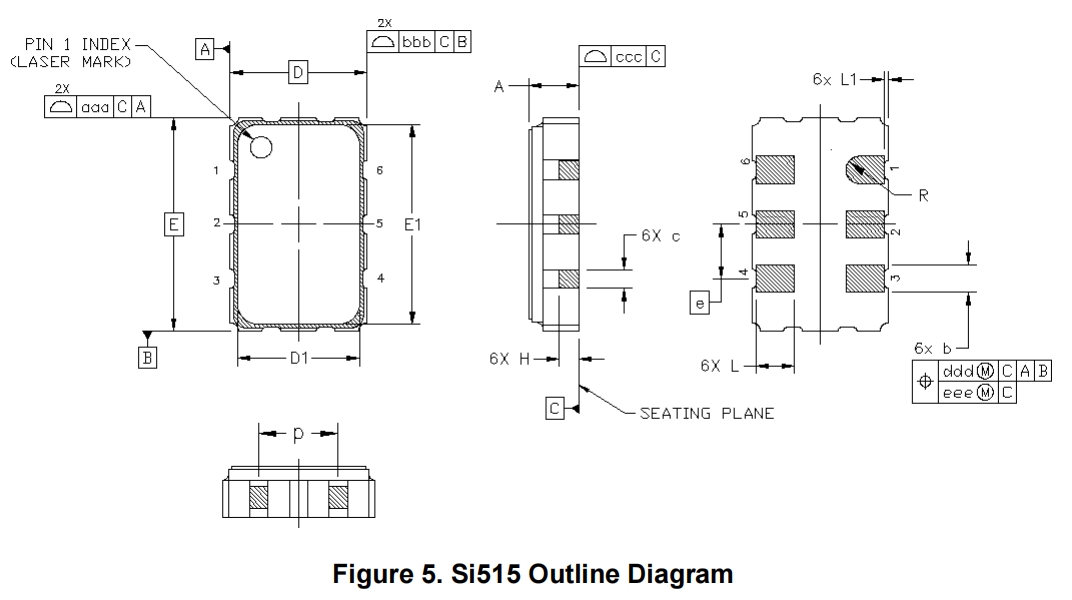

Si515按摩仪晶振,515ACA250M000BAGR,SkyworksLVPECL晶振 尺寸图

Si515按摩仪晶振,515ACA250M000BAGR,SkyworksLVPECL晶振

振荡器产品特性：

支持来自的任何频率100kHz至250MHz

低抖动操作

交付周期短：<2周

AT切基模晶体确保高可靠性/低老化

高电源噪声抑制

1%控制电压线性

可用CMOS、LVPECL、LVDS，和HCSL输出

可选集成1:2 CMOS扇出缓存

3.3和2.5 V电源选项

行业标准5x7、3.2x5和2.5x3.2 mm包装

无铅/符合RoHS

可选择的Kv（60、90、120，150 ppm/V）

Mfr Part #	Mfr	Description	Series	Frequency	Output
515BCB100M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	100 MHz	LVDS
515ACA10M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	10 MHz	LVPECL
515BCA122M880CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	122.88 MHz	LVDS
515BCA24M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	24 MHz	LVDS
515ACA004723CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	24.545454 MHz	LVPECL
515BCA10M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	10 MHz	LVDS
515ACA125M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	125 MHz	LVPECL
515FCB125M000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	125 MHz	LVDS
515ACA122M880CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	122.88 MHz	LVPECL
515BCB27M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	27 MHz	LVDS
515BCA100M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	100 MHz	LVDS
515BCB25M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	25 MHz	LVDS
515ACA204M800AAG	Skyworks有源晶振	XTAL OSC VCXO 204.8000MHZ LVPECL	Si515	204.8 MHz	LVPECL
515ACA156M250CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVPECL
515BCA156M250CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVDS
515BDA156M250CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVDS
515BCA148M500CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	148.5 MHz	LVDS
515BCA148M350CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	148.35 MHz	LVDS
515BAA004636BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	167.33165 MHz	LVDS
515BAA155M520CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	155.52 MHz	LVDS
515AAA174M687BAGR	Skyworks有源晶振	XTAL OSC VCXO 174.6870MHZ LVPECL	Si515	174.687 MHz	LVPECL
515AAA174M703BAGR	Skyworks有源晶振	XTAL OSC VCXO 174.7030MHZ LVPECL	Si515	174.703 MHz	LVPECL
515ABB212M500BAGR	Skyworks有源晶振	XTAL OSC VCXO 212.5000MHZ LVPECL	Si515	212.5 MHz	LVPECL
515ABB250M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 250.0000MHZ LVPECL	Si515	250 MHz	LVPECL
515ACA250M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 250.0000MHZ LVPECL	Si515	250 MHz	LVPECL
515BAA000123BAGR	Skyworks有源晶振	XTAL OSC VCXO 123.0000KHZ LVDS	Si515	123 kHz	LVDS
515BCA180M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 180.0000MHZ LVDS	Si515	180 MHz	LVDS
515FBA180M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 180.0000MHZ LVDS	Si515	180 MHz	LVDS
515FCA200M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 200.0000MHZ LVDS	Si515	200 MHz	LVDS
515FCA212M500BAGR	Skyworks有源晶振	XTAL OSC VCXO 212.5000MHZ LVDS	Si515	212.5 MHz	LVDS
515ACA200M000BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si515	200 MHz	LVPECL
515ACA200M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	200 MHz	LVPECL
515ACA204M800CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	204.8 MHz	LVPECL
515BCA240M000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	240 MHz	LVDS
515AAA200M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	200 MHz	LVPECL
515AAA161M132BAG	Skyworks有源晶振	XTAL OSC VCXO 161.1320MHZ LVPECL	Si515	161.132 MHz	LVPECL
515AAB156M250BAG	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVPECL	Si515	156.25 MHz	LVPECL
515ABB155M520BAG	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVPECL	Si515	155.52 MHz	LVPECL
515ACA000292BAG	Skyworks有源晶振	XTAL OSC VCXO 292.0000KHZ LVPECL	Si515	292 kHz	LVPECL
515ACB155M520BAG	Skyworks有源晶振	XTAL OSC晶振 VCXO 155.5200MHZ LVPECL	Si515	155.52 MHz	LVPECL
515BAA000108BAG	Skyworks有源晶振	XTAL OSC VCXO 108.0000KHZ LVDS	Si515	108 kHz	LVDS
515BAA155M520BAG	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVDS	Si515	155.52 MHz	LVDS
515BAA156M250BAG	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVDS	Si515	156.25 MHz	LVDS
515BBA155M520BAG	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVDS	Si515	155.52 MHz	LVDS
515BBA156M250BAG	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVDS	Si515	156.25 MHz	LVDS
515BBB153M600BAG	Skyworks有源晶振	XTAL OSC VCXO 153.6000MHZ LVDS	Si515	153.6 MHz	LVDS
515BCA135M000BAG	Skyworks有源晶振	XTAL OSC VCXO 135.0000MHZ LVDS	Si515	135 MHz	LVDS
515BDA153M600BAG	Skyworks有源晶振	XTAL OSC VCXO 153.6000MHZ LVDS	Si515	153.6 MHz	LVDS
515BDA156M250BAG	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVDS	Si515	156.25 MHz	LVDS
515FBA148M352BAG	Skyworks有源晶振	XTAL OSC VCXO 148.3520MHZ LVDS	Si515	148.352 MHz	LVDS
515FBA148M500BAG	Skyworks有源晶振	XTAL OSC VCXO 148.5000MHZ LVDS	Si515	148.5 MHz	LVDS
515FCB135M000BAG	Skyworks有源晶振	XTAL OSC VCXO 135.0000MHZ LVDS	Si515	135 MHz	LVDS
515FBA135M000BAG	Skyworks有源晶振	XTAL OSCILLATOR	Si515	135 MHz	LVDS
515FBA135M000CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	135 MHz	LVDS
515ADA131M072AAG	Skyworks有源晶振	XTAL OSC VCXO 131.0720MHZ LVPECL	Si515	131.072 MHz	LVPECL
515ACB78M0000BAG	Skyworks有源晶振	XTAL OSC VCXO 78.0000MHZ LVPECL	Si515	78 MHz	LVPECL
515BAA125M000BAG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si515	125 MHz	LVDS
515BAB125M000BAG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si515	125 MHz	LVDS
