Skyworks有源晶振,510HBA106M250BAGR,6G电信设备晶振
频率：106.2500MHZ
尺寸：5.0x3.2mm

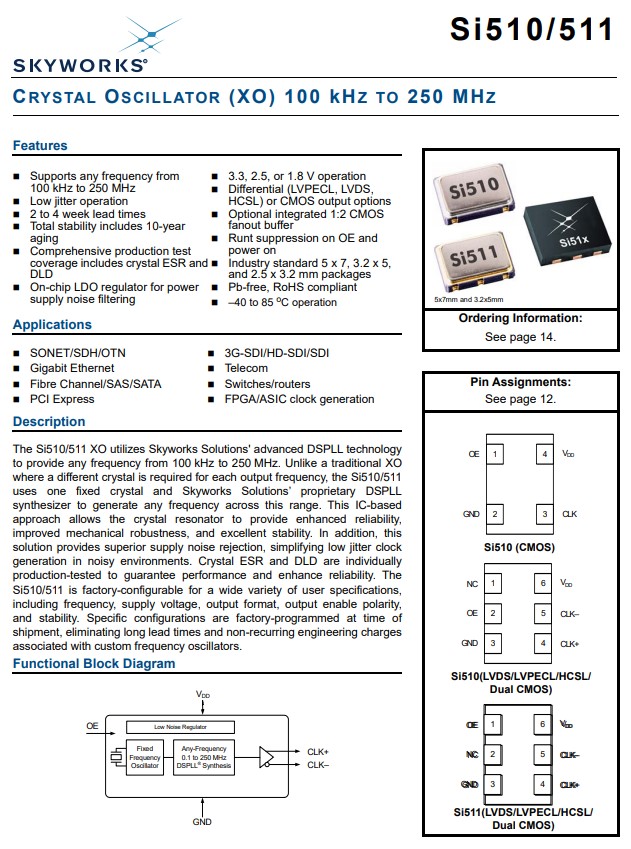

Skyworks有源晶振,510HBA106M250BAGR,6G电信设备晶振，进口晶振，Skyworks晶振，型号：Si510，编码为：510HBA106M250BAGR，频率为：106.2500MHZ，HCSL输出差分晶振，小体积尺寸5.0x3.2mm，四脚贴片晶振，SMD石英晶振，COMS石英晶体振荡器，Si510 XO利用天空解决方案的先进DSPLL技术，提供从100 kHz到250 MHz的任何频率。与传统的XO不同，每个输出频率需要不同的晶体，Si510使用一个固定晶体和天空解决方案的专有的DSPLL合成器来产生这个范围内的任何频率。这种基于集成电路的方法允许晶体谐振器提供增强的可靠性，改进的机械鲁棒性和优异的稳定性。此外，该解决方案提供了优越的电源噪声抑制，简化了在噪声环境下的低抖动时钟产生。水晶ESR和DLD分别进行了生产测试，以保证性能和提高可靠性。Si510贴片晶振可在工厂中进行配置，适合各种用户规格，包括频率、电源电压、输出格式、输出启用极性和稳定性。特定的配置是在装运时由工厂编程的，消除了与定制频率振荡器相关的长交货时间和非重复的工程费用。应用于：SONET/SDH/OTN，千兆以太网，光纤通道/SAS/SATA，PCI快递，3 G-SDI/HD-SDI/SDI，电信，交换机/路由器，FPGA/ASIC时钟生成。
Skyworks有源晶振,510HBA106M250BAGR,6G电信设备晶振，参数表
Parameter
Symbol
Test Condition
Min
Typ
Max
Unit
Nominal Frequency
FO
CMOS, Dual CMOS
106.25
—
MHz
FO
LVDS/LVPECL/HCSL
0.1
—
250
MHz
Total Stability*
Frequency Stability Grade C
–30
—
+30
ppm
Frequency Stability Grade B
–50
—
+50
ppm
Frequency Stability Grade A
–100
—
+100
ppm
Temperature Stability
Frequency Stability Grade C
–20
—
+20
ppm
Frequency Stability Grade B
–25
—
+25
ppm
Frequency Stability Grade A
–50
—
+50
ppm
Startup Time
TSU
Minimum V DD until output
frequency (FO) within specification
—
—
10
ms
Disable Time
TD
FO> 10 MHz
—
—
5
µs
FO< 10 MHz
—
—
40
µs
Enable Time
TE
FO> 10 MHz
—
—
20
µs
FO< 10 MHz
—
—
60
µs
*Note: Total stability includes initial accuracy, operating temperature, supply voltage change, load change, shock and vibration
(not under operation), and 10 years aging at 40 oC.

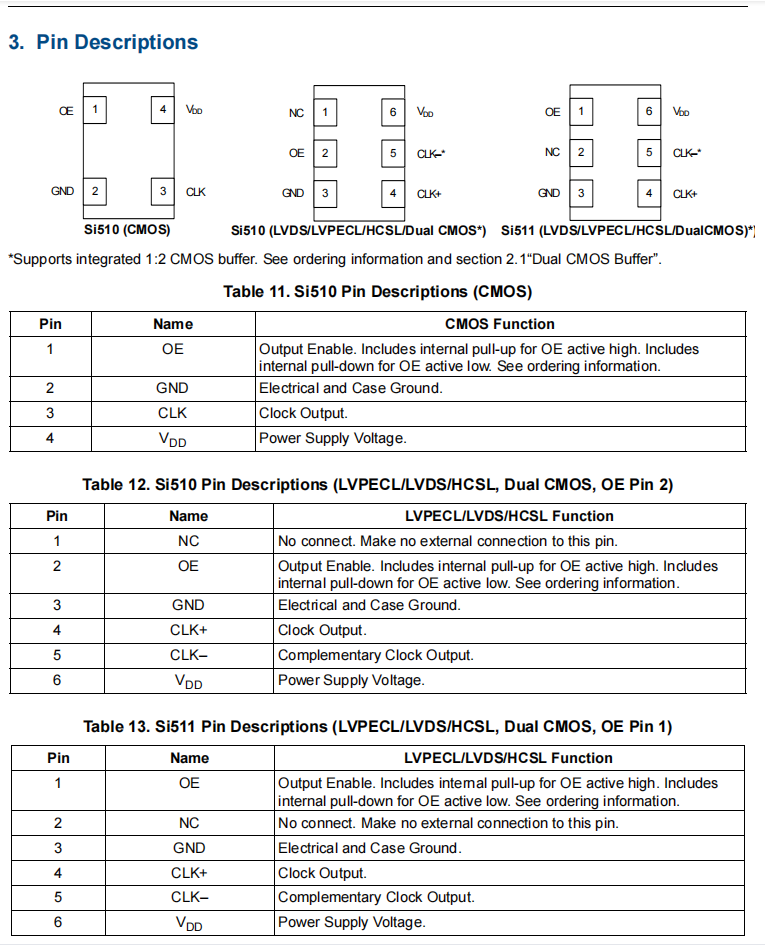

Skyworks有源晶振,510HBA106M250BAGR,6G电信设备晶振，尺寸图
Skyworks有源晶振,510HBA106M250BAGR,6G电信设备晶振
产品特点：
支持任何频率从100 kHz到250 MHz
低抖动操作
24周交货时间
总稳定包括10年老化
综合生产测试覆盖包括晶体ESR和DLD
芯片LDO调节器电源噪声过滤
3.3V，2.5V，或1.8V操作
差分（LVPECL，LVDS，HCSL）或CMOS输出选项石英晶体振荡器
可选集成1:2 CMOS风扇缓冲区
转速抑制OE和电源
行业标准5 x 7，3.2 x 5，和2.5 x 3.2毫米
无铅，RoHS兼容
工作温度范围：–40到85℃操作
| 晶振料号 | 品牌 | 描述 | 系列 | 频率 | 输出 | 电压 |
| 510DBA100M000BAG | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 3.3V |
| 510DCA100M000AAG | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 3.3V |
| 510HBA10M0000BAGR | Skyworks晶振 | XTAL OSC XO 10.0000MHZ HCSL SMD | Si510 | 10 MHz | HCSL | 2.5V |
| 510DBA10M0000AAGR | Skyworks晶振 | XTAL OSC XO 10.0000MHZ HCSL SMD | Si510 | 10 MHz | HCSL | 3.3V |
| 510HBA10M0000BAG | Skyworks晶振 | XTAL OSC XO 10.0000MHZ HCSL SMD | Si510 | 10 MHz | HCSL | 2.5V |
| 510DAA100M000CAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 3.3V |
| 510LAA100M000CAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 1.8V |
| 510DAA25M6000BAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 25.6 MHz | HCSL | 3.3V |
| 510DBA10M0000AAG | Skyworks晶振 | XTAL OSC XO 10.0000MHZ HCSL SMD | Si510 | 10 MHz | HCSL | 3.3V |
| 510HBA100M000CAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 2.5V |
| 510LBA25M0000BAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 25 MHz | HCSL | 1.8V |
| 510DBA100M000CAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 3.3V |
| 510DBA100M000BAGR | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 3.3V |
| 510DBA125M000BAGR | Skyworks晶振 | XTAL OSC XO 125.0000MHZ HCSL SMD | Si510 | 125 MHz | HCSL | 3.3V |
| 510DBA27M0000BAGR | Skyworks晶振 | XTAL OSC XO 27.0000MHZ HCSL SMD | Si510 | 27 MHz | HCSL | 3.3V |
| 510HBA100M000BAGR | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 2.5V |
| 510HBA106M250BAGR | Skyworks晶振 | XTAL OSC XO 106.2500MHZ HCSL SMD | Si510 | 106.25 MHz | HCSL | 2.5V |
| 510DCA100M000AAGR | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 3.3V |
| 510DCA100M300AAGR | Skyworks晶振 | XTAL OSC XO 100.3000MHZ HCSL SMD | Si510 | 100.3 MHz | HCSL | 3.3V |
| 510DCA25M0000AAGR | Skyworks晶振 | XTAL OSC XO 25.0000MHZ HCSL SMD | Si510 | 25 MHz | HCSL | 3.3V |
| 510DCA38M4000AAGR | Skyworks晶振 | XTAL OSC XO 38.4000MHZ HCSL SMD | Si510 | 38.4 MHz | HCSL | 3.3V |
| 510HCA125M000AAGR | Skyworks晶振 | XTAL OSC XO 125.0000MHZ HCSL SMD | Si510 | 125 MHz | HCSL | 2.5V |
| 510DCA50M0000AAGR | Skyworks晶振 | XTAL OSC XO 50.0000MHZ HCSL SMD | Si510 | 50 MHz | HCSL | 3.3V |
| 510LCA50M1000AAGR | Skyworks晶振 | XTAL OSC XO 50.1000MHZ HCSL SMD | Si510 | 50.1 MHz | HCSL | 1.8V |
| 510DCA125M000AAGR | Skyworks晶振 | XTAL OSC XO 125.0000MHZ HCSL SMD | Si510 | 125 MHz | HCSL | 3.3V |
| 510DCB100M000BAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 3.3V |
| 510DBA156M250BAGR | Skyworks晶振 | XTAL OSC XO 156.2500MHZ HCSL SMD | Si510 | 156.25 MHz | HCSL | 3.3V |
| 510HBA159M375BAGR | Skyworks晶振 | XTAL OSC XO 159.3750MHZ HCSL SMD | Si510 | 159.375 MHz | HCSL | 2.5V |
| 510LAA150M000BAGR | Skyworks晶振 | XTAL OSC XO 150.0000MHZ HCSL SMD | Si510 | 150 MHz | HCSL | 1.8V |
| 510DCB100M000CAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 3.3V |
| 510LCA004689CAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 1.8V |
| 510LCA100M000CAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 1.8V |
| 510DCA100M000CAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 3.3V |
| 510DCA106M250BAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 106.25 MHz | HCSL | 3.3V |
| 510DCA25M0000BAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 25 MHz | HCSL | 3.3V |
| 510LCA20M0000CAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 20 MHz | HCSL | 1.8V |
| 510DCA100M000BAGR | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 3.3V |
| 510LCA100M000BAGR | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 1.8V |
| 510DBA100M000AAGR | 有源晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 3.3V |
| 510DAA100M000AAGR | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 3.3V |
| 510DBA100M000AAG | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 3.3V |
| 510DCB100M000CAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 3.3V |
| 510DCA25M0000BAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 25 MHz | HCSL | 3.3V |
| 510DCA100M000CAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 3.3V |
| 510LCA100M000CAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 1.8V |
| 510LCA20M0000CAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 20 MHz | HCSL | 1.8V |
| 510LCA004689CAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 1.8V |
| 510DCA106M250BAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 106.25 MHz | HCSL | 3.3V |
| 510DCB100M000BAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 3.3V |
| 510LAA150M000BAG | Skyworks晶振 | XTAL OSC XO 150.0000MHZ HCSL SMD | Si510 | 150 MHz | HCSL | 1.8V |
| 510DCA100M000BAG | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 3.3V |
| 510LCA100M000BAG | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 1.8V |
| 510DAA100M000AAG | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 3.3V |
| 510LBA25M0000BAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 25 MHz | HCSL | 1.8V |
| 510HBA100M000CAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 2.5V |
| 510DBA100M000CAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 3.3V |
| 510DBA125M000BAG | Skyworks晶振 | XTAL OSC XO 125.0000MHZ HCSL SMD | Si510 | 125 MHz | HCSL | 3.3V |
| 510DBA27M0000BAG | Skyworks晶振 | XTAL OSC XO 27.0000MHZ HCSL SMD | Si510 | 27 MHz | HCSL | 3.3V |
| 510HBA100M000BAG | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 2.5V |
| 510HBA106M250BAG | Skyworks晶振 | XTAL OSC XO 106.2500MHZ HCSL SMD | Si510 | 106.25 MHz | HCSL | 2.5V |
| 510LAA100M000BAG | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 1.8V |
| 510LAA100M000CAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 1.8V |
| 510DAA100M000CAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | HCSL | 3.3V |
| 510DAA25M6000BAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 25.6 MHz | HCSL | 3.3V |
| 510DAA100M000BAG | Skyworks晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | Si510 | 100 MHz | HCSL | 3.3V |
| 510LAA125M000BAG | Skyworks晶振 | XTAL OSC XO 125.0000MHZ HCSL SMD | Si510 | 125 MHz | HCSL | 1.8V |
| 510DCA156M000BAGR | Skyworks晶振 | XTAL OSC XO 156.0000MHZ HCSL SMD | Si510 | 156 MHz | HCSL | 3.3V |
| 510DCA156M000CAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 156 MHz | HCSL | 3.3V |
| 510DCA156M250CAGR | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 156.25 MHz | HCSL | 3.3V |
| 510DCA156M000CAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 156 MHz | HCSL | 3.3V |
| 510DCA156M250CAG | Skyworks晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 156.25 MHz | HCSL | 3.3V |
| 510DCA156M000BAG | Skyworks晶振 | XTAL OSC XO 156.0000MHZ HCSL SMD | Si510 | 156 MHz | HCSL | 3.3V |
| 510HCA125M000AAG | Skyworks晶振 | XTAL OSC XO 125.0000MHZ HCSL SMD | Si510 | 125 MHz | HCSL | 2.5V |
| 510DCA50M0000AAG | Skyworks晶振 | XTAL OSC XO 50.0000MHZ HCSL SMD | Si510 | 50 MHz | HCSL | 3.3V |
| 510LCA50M1000AAG | Skyworks晶振 | XTAL OSC XO 50.1000MHZ HCSL SMD | Si510 | 50.1 MHz | HCSL | 1.8V |
| 510DCA125M000AAG | Skyworks晶振 | XTAL OSC XO 125.0000MHZ HCSL SMD | Si510 | 125 MHz | HCSL | 3.3V |
| 510DCA100M300AAG | Skyworks晶振 | XTAL OSC XO 100.3000MHZ HCSL SMD | Si510 | 100.3 MHz | HCSL | 3.3V |
| 510DCA25M0000AAG | Skyworks晶振 | XTAL OSC XO 25.0000MHZ HCSL SMD | Si510 | 25 MHz | HCSL | 3.3V |
| 510DCA38M4000AAG | Skyworks晶振 | XTAL OSC XO 38.4000MHZ HCSL SMD | Si510 | 38.4 MHz | HCSL | 3.3V |
| 510DBA156M250BAG | Skyworks晶振 | XTAL OSC XO 156.2500MHZ HCSL SMD | Si510 | 156.25 MHz | HCSL | 3.3V |
| 510HBA159M375BAG | Skyworks晶振 | XTAL OSC XO 159.3750MHZ HCSL SMD | Si510 | 159.375 MHz | HCSL | 2.5V |
