XXDPBISANF-16.000000\GPS专用\3225mm\16MHZ\SMD

频率：3.2*2.5mm

尺寸：16MHZ

XXDPBISANF-16.000000\GPS专用\3225mm\16MHZ\SMD，尺寸为3225mm,频率为16MHZ,工作温度-10°C~ 60°C，台湾进口晶振，Taitien晶振，泰艺晶振,无源贴片晶振,石英晶体谐振器,石英晶振,水晶振动子,贴片晶振，无线通信设备晶振，汽车专用晶振，蓝牙晶振，手机晶振，GPS定位导航系统晶振，硬盘专用晶振，XXCCCCNANF-12.000000石英贴片晶振。

无源晶振产品主要应用范围：汽车，蓝牙，手机，GPS，无线局域网，4G/LTE，硬盘等领域。XXDPBISANF-16.000000\GPS专用\3225mm\16MHZ\SMD.

订购热线：0755-27838351

无源晶振产品主要应用范围：汽车，蓝牙，手机，GPS，无线局域网，4G/LTE，硬盘等领域。XXDPBISANF-16.000000\GPS专用\3225mm\16MHZ\SMD.

XXDPBISANF-16.000000\GPS专用\3225mm\16MHZ\SMD 参数表

参数	Min .	Typical	Max .	Unit
存储温度范围	--55	-	125
标准频率	16 , 24, 26, 27, 32, 40			MHz
驱动级别	-	10	200	µw
并联电容(Co)	-	-	3.0	F
绝缘电阻	500 M? @ DC100V	-	-
老化	±1.0 to ±3.0			ppm / year

Frequency Range	MODE	E . S . R
8 MHz ≤ Fo < 10 MHz	A1	<400 ?
10 MHz Fo 13 MHz	A1	<150?
13 MHz < Fo 19 .5 MHz	A1	<80?
19 .5 MHz < Fo 27 MHz	A1	<60?
27 MHz < Fo 60 MHz	A1	<50?

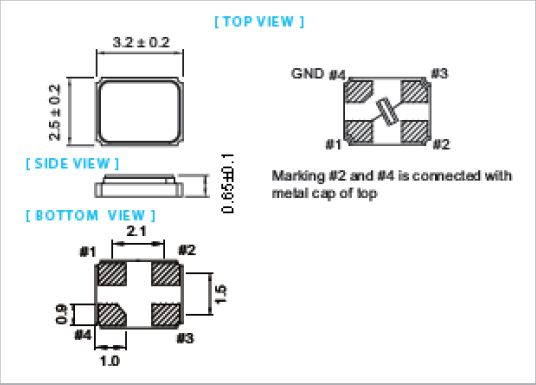

XXDPBISANF-16.000000\GPS专用\3225mm\16MHZ\SMD 尺寸图

XXDPBISANF-16.000000晶振特点

-典型的3.2x2.5x0.7mm超薄陶瓷封装。
- 8mm宽的磁带和卷轴包装，用于自动组装。
-紧密公差10ppm可用

更多相关泰艺晶振型号

原厂编码	厂家	型号	系列	频率	工作温度
XXDCCCNANF-12.000000	Taitien	XX	MHz Crystal	12MHz	-20°C ~ 70°C
XXGEGLNANF-25.000000	Taitien	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXGGGINANF-25.000000	Taitien	XX	MHz Crystal	25MHz	-10°C ~ 60°C
XXDGHHPANF-20.000000	Taitien	XX	MHz Crystal	20MHz	-40°C ~ 125°C
XXCGGINANF-18.432000	Taitien	XX	MHz Crystal	18.432MHz	-10°C ~ 60°C
XXBBBCNANF-16.000000	Taitien	XX	MHz Crystal	16MHz	-20°C ~ 70°C
XXHCCLNANF-25.000000	Taitien	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXBBBCNANF-26.000000	Taitien	XX	MHz Crystal	26MHz	-20°C ~ 70°C
XXGPPLNANF-20.000000	Taitien	XX	MHz Crystal	20MHz	-40°C ~ 85°C
XXEBCLNANF-40.000000	Taitien	XX	MHz Crystal	40MHz	-40°C ~ 85°C
XXCCCCNANF-25.000000	Taitien	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXHCECNANF-26.690000	Taitien	XX	MHz Crystal	26.69MHz	-20°C ~ 70°C
XXHEGCNANF-25.000000	Taitien	XX	MHz Crystal	25MHz	-20°C ~ 70°C
XXHCCCNANF-25.000000	Taitien	XX	MHz Crystal	25MHz	-20°C ~ 70°C
XXHEECNANF-30.000000	Taitien	XX	MHz Crystal	30MHz	-20°C ~ 70°C
XXCCEINANF-27.120000	Taitien	XX	MHz Crystal	27.12MHz	-10°C ~ 60°C
XXCBBCNANF-24.000000	Taitien	XX	MHz Crystal	24MHz	-20°C ~ 70°C
XXHCELNANF-26.000000	Taitien	XX	MHz Crystal	26MHz	-40°C ~ 85°C
XXEBBCNANF-40.000000	Taitien	XX	MHz Crystal	40MHz	-20°C ~ 70°C
XXCBPLNANF-25.000000	Taitien	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXDPBISANF-16.000000	Taitien	XX	MHz Crystal	16MHz	-10°C ~ 60°C
XXHEELNANF-18.432000	Taitien	XX	MHz Crystal	18.432MHz	-40°C ~ 85°C
XXFPPLNANF-32.000000	Taitien	XX	MHz Crystal	32MHz	-40°C ~ 85°C
XXHEELNANF-24.000000	Taitien	XX	MHz Crystal	24MHz	-40°C ~ 85°C
XXCCCLNANF-49.152000	Taitien	XX	MHz Crystal	49.152MHz	-40°C ~ 85°C
XXDBPLNANF-25.000000	泰艺晶振	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXCCCCNANF-12.000000	Taitien	XX	MHz Crystal	12MHz	-20°C ~ 70°C
XXCGGLNANF-12.000000	Taitien	XX	MHz Crystal	12MHz	-40°C ~ 85°C
XXGDDCNANF-25.000000	Taitien	XX	MHz Crystal	25MHz	-20°C ~ 70°C
XXGEHHNANF-24.000000	Taitien	XX	MHz Crystal	24MHz	-40°C ~ 125°C
XXHEELNANF-12.000000	Taitien	XX	MHz Crystal	12MHz	-40°C ~ 85°C
XXPEELNANF-16.000000	Taitien	XX	MHz Crystal	16MHz	-40°C ~ 85°C
XXHCECAANF-26.690000	Taitien	XX	MHz Crystal	26.69MHz	-20°C ~ 70°C
XXBBBCNANF-32.000000	Taitien	XX	MHz Crystal	32MHz	-20°C ~ 70°C
XXDPPCNANF-27.000000	Taitien	XX	MHz Crystal	27MHz	-20°C ~ 70°C
XXGEELNANF-25.000000	Taitien	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXHCCLNANF-12.288000	Taitien	XX	MHz Crystal	12.288MHz	-40°C ~ 85°C
XXBBBCAANF-26.000000	Taitien	XX	MHz Crystal	26MHz	-20°C ~ 70°C
XXHEELAANF-18.432000	Taitien	XX	MHz Crystal	18.432MHz	-40°C ~ 85°C
XXBBCLNANF-16.000000	Taitien	XX	MHz Crystal	16MHz	-40°C ~ 85°C
XXFBBLNANF-20.000000	Taitien	XX	MHz Crystal	20MHz	-40°C ~ 85°C
XXGBCLNANF-24.000000	Taitien	XX	MHz Crystal	24MHz	-40°C ~ 85°C
XXCBELNANF-12.000000	Taitien	XX	MHz Crystal	12MHz	-40°C ~ 85°C
XXCBBCNANF-32.000000	Taitien	XX	MHz Crystal	32MHz	-20°C ~ 70°C
