Wi2Wi有源晶振,FC7-T-25000X-M-C-D-3-R-X,光纤通信6G晶振

频率：25.000MHz

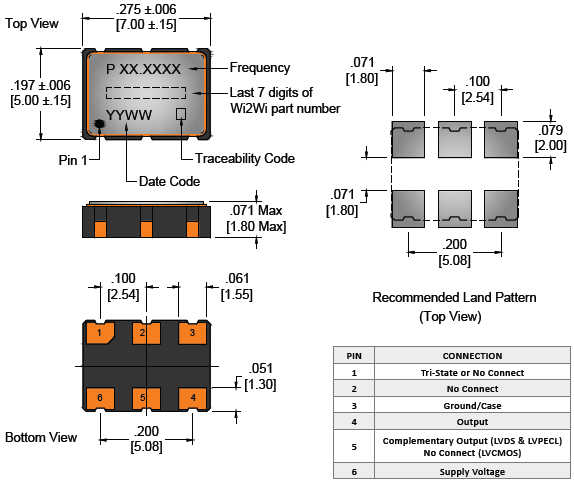

尺寸：7.0x5.0mm

Wi2Wi有源晶振,FC7-T-25000X-M-C-D-3-R-X,光纤通信6G晶振，美国进口晶振，Wi2wi威尔威晶振，FC7系列编码为：FC7-T-25000X-M-C-D-3-R-X，频率为：25.000MHz，小体积晶振尺寸：7.0x5.0mm，LVDS差分输出晶振，石英晶体振荡器，六脚贴片晶振，有源晶振。Wi2Wi的FC7系列提供了精确的定时在一个密封的包，并可在标准和自定义频率和配置。能够轻易识别网络信号以及精确的处理双极信号。FC7系列贴片晶振具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电源电压，低耗能，低损耗，低电平等特点。广泛应用于通讯设备、机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、以及高速视频，图形，测试和测量设备，和航空包括MIL温度范围等应用。

订购热线：0755-27838351

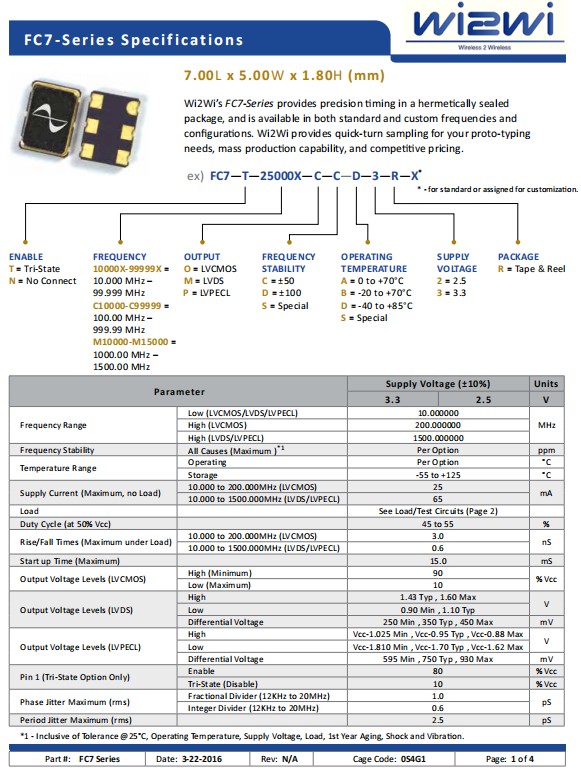

Wi2Wi有源晶振,FC7-T-25000X-M-C-D-3-R-X,光纤通信6G晶振，参数表

Parameter		Supply Voltage (±10%)		Units
		3.3	2.5	V
Frequency Range	Low (LVCMOS/LVDS/LVPECL)	10		MHz
	High (LVCMOS)	200		MHz
	High (LVDS/LVPECL)	1500		MHz
Frequency Stability	All Causes (Maximum ) *1	Per Option		ppm



Temperature Range	Operating	Per Option		°C
	Storage	-55 to +125		°C
Supply Current (Maximum, no Load)	10.000 to 200 .000MHz (LVCMOS)	25		mA
	10.000 to 1500 .000MHz (LVDS/LVPECL)	65

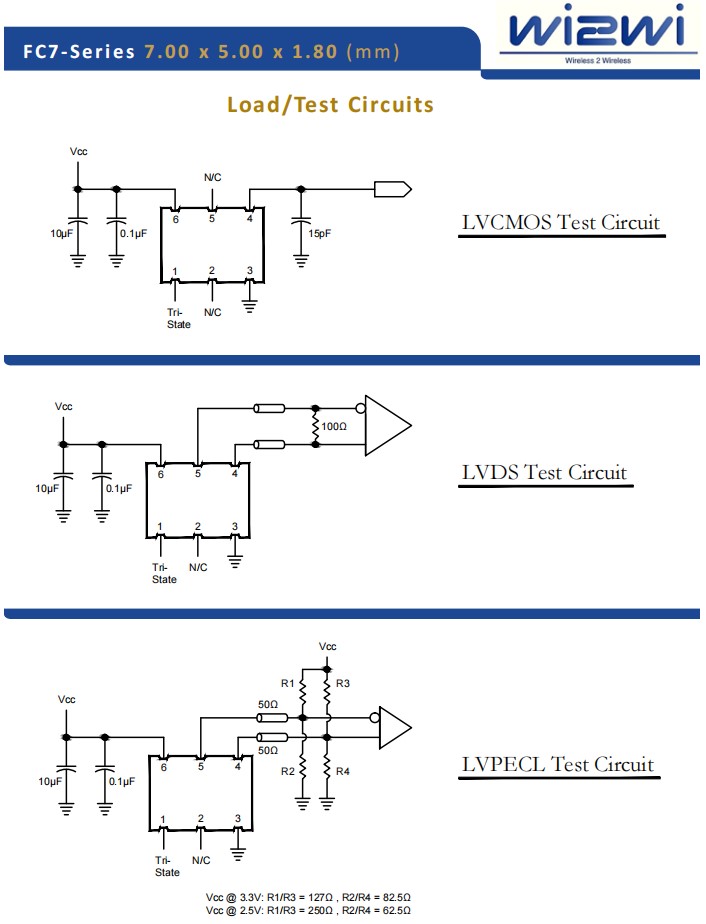

Load		See Load/Test Circuits (Page 2)
Duty Cycle (at 50% Vcc)		45 to 55		%
Rise/Fall Times (Maximum under Load)	10.000 to 200 .000MHz (LVCMOS)	3		nS
	10.000 to 1500 .000MHz (LVDS/LVPECL)	0.6
Start up Time (Maximum)		15		mS
Output Voltage Levels (LVCMOS)	High (Minimum)	90		% Vcc
	Low (Maximum)	10
Output Voltage Levels (LVDS)	High	1.43 Typ , 1.60 Max		V
	Low	0.90 Min , 1.10 Typ
	Differential Voltage	250 Min , 350 Typ , 450 Max		mV
Output Voltage Levels (LVPECL)	High	Vcc- 1 .025 Min , Vcc-0 .95 Typ , Vcc-0 .88 Max		V
	Low	Vcc- 1 .810 Min , Vcc- 1 .70 Typ , Vcc- 1 .62 Max
	Differential Voltage	595 Min , 750 Typ , 930 Max		mV
Pin 1 (Tri-State Option Only)	Enable	80		% Vcc
	Tri-State (Disable)	10		% Vcc
Phase Jitter Maximum (rms)	Fractional Divider (12KHz to 20MHz)	1		pS
	Integer Divider (12KHz to 20MHz)	0.6
Period Jitter Maximum (rms)		2.5		pS
