温补晶振编码X1G005231002300支持OEM-ODM晶振代工代购，日本爱普生公司通过持续不断的成长，如今已是鼎鼎大名的知名频率元器件制造商，通过不断积累经验，快速布局实现名利双丰收的局面，开发了有源振荡器和石英晶振，这是一家1942年成立之初,便将绿色创新精神融入自身基因,坚信技术创新拥有可以改变世界的巨大潜能,并在追求商业与自然和谐发展的道路上不断探索。

Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	F.Tol@25°C	Ope Temperature
X1G005241001400	TG5032SGN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005241001500	TG5032SGN	26.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231000400	TG5032CGN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231000500	TG5032CGN	24.576000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231000900	TG5032CGN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001000	TG5032CGN	24.576000 MHz	5.00 x 3.20 x 1.45 mm	CMOS输出晶振	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001100	TG5032CGN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001200	TG5032CGN	12.800000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001300	TG5032CGN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001500	TG5032CGN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001600	TG5032CGN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001700	TG5032CGN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001900	TG5032CGN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231002000	TG5032CGN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231002300	TG5032CGN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231002500	TG5032CGN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231002600	TG5032CGN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231002700	TG5032CGN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231002800	TG5032CGN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231002900	TG5032CGN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C

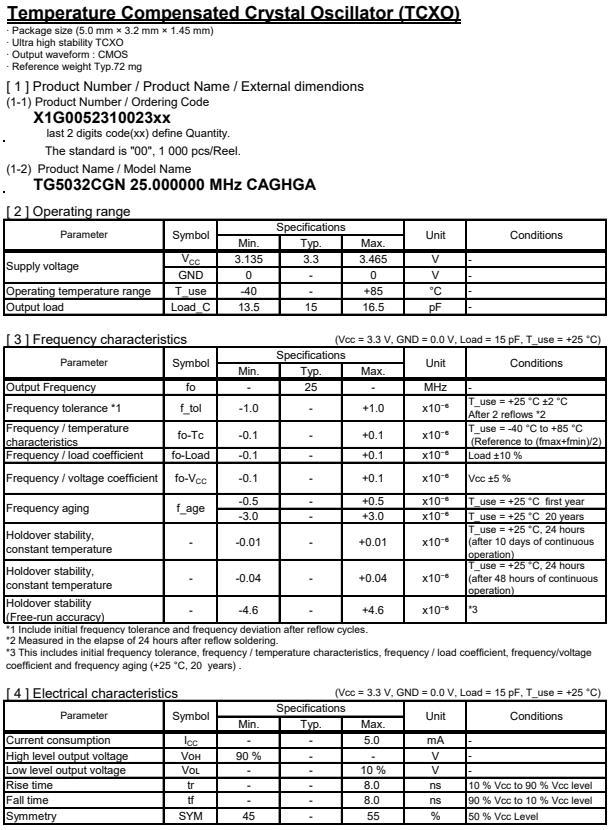

爱普生公司发布了TG5032CGN，编码X1G005231002300，频率25.000000兆赫，输出WaveCMOS，电源电压3.13 ~ 3.46 V，电源电压(一般)3.300 V，尺寸(LxWxH)5.0 x 3.2 x 1.4 mm，操作温度-40至++85°C，频率公差+/- 1.0 ppm，这是一款CMOS输出的TCXO振荡器，有源晶振，非常适合用于OEM-ODM晶振，医疗设备，智能家居，无线模块，仪器仪表等行业。
