NZ2016SH-24.000MHZNSC5022C|NDK车规晶振|3.3V|24M|CMOS

频率：24MHZ

尺寸：2.0*1.6mm

NZ2016SH-24.000MHZNSC5022C|NDK车规晶振|3.3V|24M|CMOS，是一款高质量的时钟进口有源晶体振荡器，NDK车规晶振,汽车导航系列晶振,有源振荡器,汽车音响设备日本进口晶振,车规晶振,产品特征：支持- 40至+125°C的宽温度范围。小巧轻便，尺寸:2.0 x 1.6 x 0.7 mm，这种晶体时钟振荡器可以支持低频率(从1.5 MHz)，低相位抖动(类型:100fs(频率偏移:12khz至20mhz)@ 80mhz,3.3V)，应用于汽车导航系统，汽车音响设备和照相机，适用于智能手机、平板电脑、笔记本电脑、PC卡，音频设备和无线模块，SDH/SONET、WiMAX、LTE，通信设备和基站等应用产品.

我们还开发了用于汽车应用的晶体振荡器。此外，还有大量符合汽车电子委员会(AEC)标准的汽车晶体振荡器。NDK将继续引领行业并支持电子产品的发展，成为高可靠性、高质量和高精度产品的顶级晶体器件制造商。NZ2016SH-24.000MHZNSC5022C|NDK车规晶振|3.3V|24M|CMOS.

订购热线：0755-27838351

Japan1

NZ2016SH-24.000MHZNSC5022C|NDK车规晶振|3.3V|24M|CMOS 参数表

NZ2016SH		Electrical Spec.
Parameters	SYM	min	typ	max	Units	Notes
Nominal Frequency	fnom	1.5		80	MHz
Supply Voltage	VCC	+1.8 to +3.3			V
Current Consumption (Operating)	ICC	See Table.2			mA	at 25℃
Current Consumption (Stand-by)	IST			20	mA	at 25℃
Output Level	-	CMOS
Load Capacitance	CL			15	pF
Operating Temperature Range	Topr	[-10 to +60] to [-40 to +125]			℃	Table.1
Overall Frequency Tolerance	Df/fnom	± 20 to ± 100			ppm	Table.1 *1
Output Voltage	VOL			0.1 VCC	V
Output Voltage	VOH	0.9 VCC			V
Rise Time(tr), Fall Time(tf)	tr/tf			5	ns	+2.5 V to +3.3 V 0.1 VCC to 0.9 VCC
Rise Time(tr), Fall Time(tf)	tr/tf			6	ns	+1.8 V 0.1 VCC to 0.9 VCC
Symmetry	SYM	45		55	%	at 1/2 VCC
Start-up Time	tsu			4	ms
Output Wave Form	-	Square wave
Stand-by Function	#1 PAD input				# 3 PAD output
	H level (0.7 VCC to VCC) or open L level (0.3 VCC max)				Operating
	H level (0.7 VCC to VCC) or open L level (0.3 VCC max)				High impedance

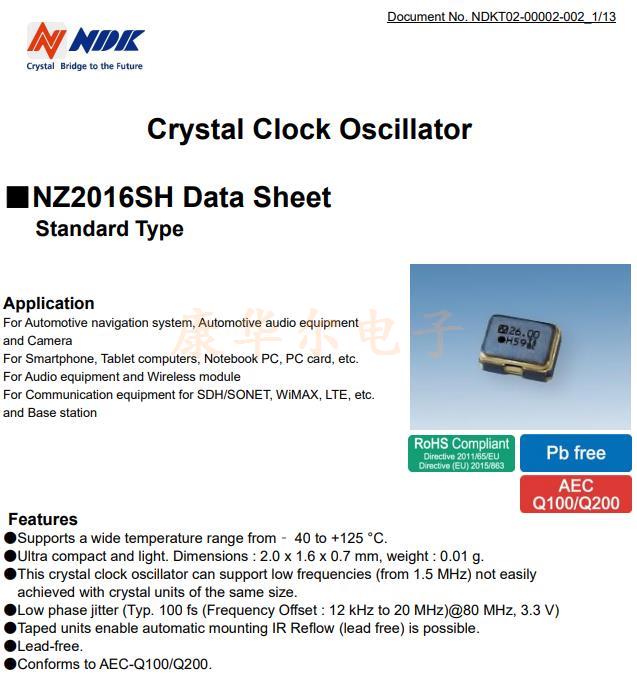

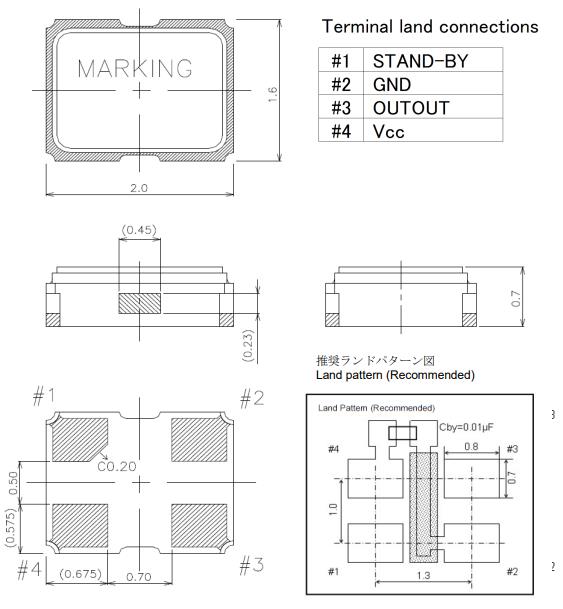

NZ2016SH-24.000MHZNSC5022C|NDK车规晶振|3.3V|24M|CMOS 尺寸图
