具有LVDS差分输出晶振ECX2-LMV系列低抖动振荡器ECX2-LMV-3CN-156.250-TR
伊西斯晶振集团是一家私人控股的全球领先企业,在维护全球日益增长的高可靠性创新频率控制设备需求方面处于领先地位.一流的研究公司和电子设备设计者,是全球领先的15家开发和生产创新频率控制解决方案的石英晶体,贴片晶振,晶体振荡器制造商,超过600家.ECS Inc晶振支持劳动力在香港、韩国、韩国、烟台、中国和美国的生产设施和物流中心超过225家.
具有LVDS差分输出晶振ECX2-LMV系列低抖动振荡器ECX2-LMV-3CN-156.250-TR
| ECS-3225S33-250-FN-TR | ECScrystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S33-250-FN-TR | ECScrystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S33-250-FN-TR | ECScrystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S33-260-FN-TR | ECScrystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
| ECS-3225S33-260-FN-TR | ECScrystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
| ECS-3225S33-260-FN-TR | ECScrystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
| ECS-3225S33-400-FN-TR | ECScrystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S33-400-FN-TR | ECScrystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S33-400-FN-TR | ECScrystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S25-240-FN-TR | ECScrystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-240-FN-TR | ECScrystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-240-FN-TR | ECScrystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-250-FN-TR | ECScrystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S25-250-FN-TR | ECScrystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S25-250-FN-TR | ECScrystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S18-160-FN-TR | ECScrystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
| ECS-3225S18-160-FN-TR | ECScrystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
| ECS-3225S18-160-FN-TR | ECScrystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
| ECS-3225S18-200-FN-TR | ECScrystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
| ECS-3225S18-200-FN-TR | ECScrystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
| ECS-3225S18-200-FN-TR | ECScrystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
| ECS-3225S18-240-FN-TR | ECScrystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S18-240-FN-TR | ECScrystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S18-240-FN-TR | ECScrystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S18-270-FN-TR | ECScrystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
| ECS-3225S18-270-FN-TR | ECScrystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
| ECS-3225S18-270-FN-TR | ECScrystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
| ECS-3225S18-320-FN-TR | ECScrystal | ECS-3225S | 32MHz | -40°C ~ 85°C |
| ECS-3225S18-320-FN-TR | ECScrystal | ECS-3225S | 32MHz | -40°C ~ 85°C |
| ECS-3225S18-320-FN-TR | ECScrystal | ECS-3225S | 32MHz | -40°C ~ 85°C |
| ECS-3225S18-400-FN-TR | ECScrystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S18-400-FN-TR | ECScrystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S18-400-FN-TR | ECScrystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S18-500-FN-TR | ECScrystal | ECS-3225S | 50MHz | -40°C ~ 85°C |
| ECS-3225S18-500-FN-TR | ECScrystal | ECS-3225S | 50MHz | -40°C ~ 85°C |
| ECS-3225S18-500-FN-TR | ECScrystal | ECS-3225S | 50MHz | -40°C ~ 85°C |
| ECS-2520S25-240-FN-TR | ECScrystal | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-240-FN-TR | ECScrystal | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-240-FN-TR | ECScrystal | ECS-2520S | 24MHz | -40°C ~ 85°C |

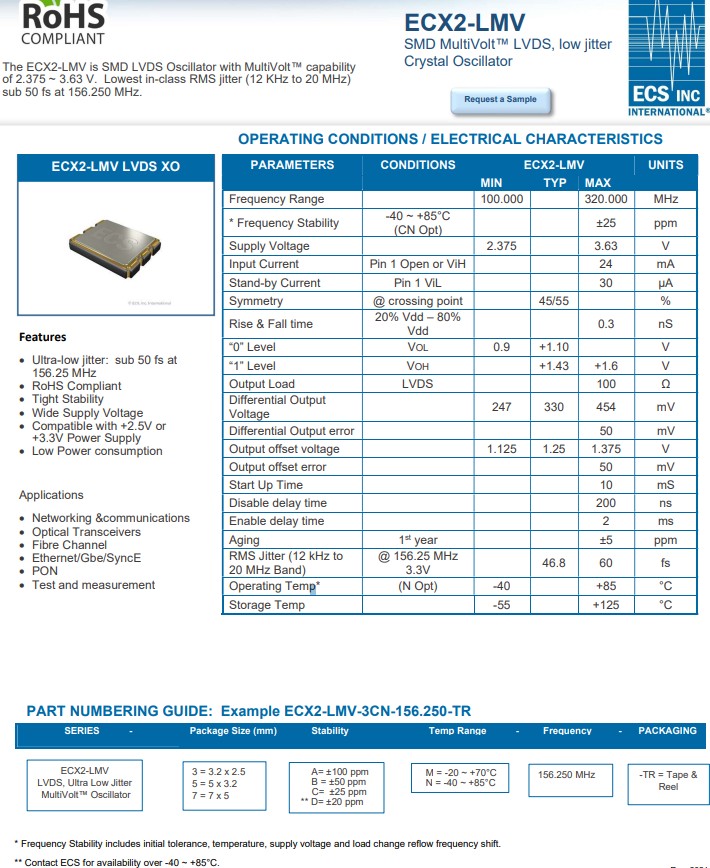

ECX2-LMV是具有MultiVolt功能的贴片LVDS振荡器2.375~ 3.63V，同类最低均方根抖动(12 KHz至20 MHz) 156.250MHz时低于50 fs。
特征：
超低抖动:低于50 fs
156.25兆赫
符合RoHS标准
紧密稳定性
宽电源电压
兼容+2.5V或
+3.3V电源
低功耗
应用程序：网络和通信，光学收发器，光纤通道，以太网/Gbe/SyncE，PON，测试和测量
具有LVDS差分输出晶振ECX2-LMV系列低抖动振荡器ECX2-LMV-3CN-156.250-TR
| ECX2-LMV-3CN-125.000-TR | 3.2 毫米 x 2.5 毫米 x 2.0 毫米 | 125MHz | ±25 PPM | -40°C ~ +85°C |
|
| ECX2-LMV-3CN-156.250-TR | 3.2 毫米 x 2.5 毫米 x 2.0 毫米 | 156.250MHz | ±25 PPM | -40°C ~ +85°C |
|
| ECX2-LMV-5CN-100.000-TR | 5.0 毫米 x 3.2 毫米 x 1.2 毫米 | 100MHz | ±25 PPM | -40°C ~ +85°C |
|
| ECX2-LMV-5CN-125.000-TR | 5.0 毫米 x 3.2 毫米 x 1.2 毫米 | 125MHz | ±25 PPM | -40°C ~ +85°C |
|
| ECX2-LMV-7CN-100.000-TR | 7.0 毫米 x 5.0 毫米 x 1.5 毫米 | 100MHz | ±25 PPM | -40°C ~ +85°C |
|
| ECX2-LMV-7CN-125.000-TR | 7.0 毫米 x 5.0 毫米 x 1.5 毫米 | 125MHz | ±25 PPM | -40°C ~ +85°C |
|
| ECX2-LMV-7CN-156.250-TR | 7.0 毫米 x 5.0 毫米 x 1.5 毫米 | 156.250 MHz | ±25 PPM | -40°C ~ +85°C |
