X1G004241002300是一款LVDS差分输出晶振具有高性能低抖动特点
日本爱普生LVDS晶振也就是我们所说的EPSON差分晶振,有源晶体，具有多种输出功能，能够轻易识别网络信号以及精确的处理双极信号.差分贴片晶体振荡器使用于产品中能够很容易地识别小信号,能够从容精确地处理'双极'信号,对外部电磁干扰（EMI）是高度免疫的。

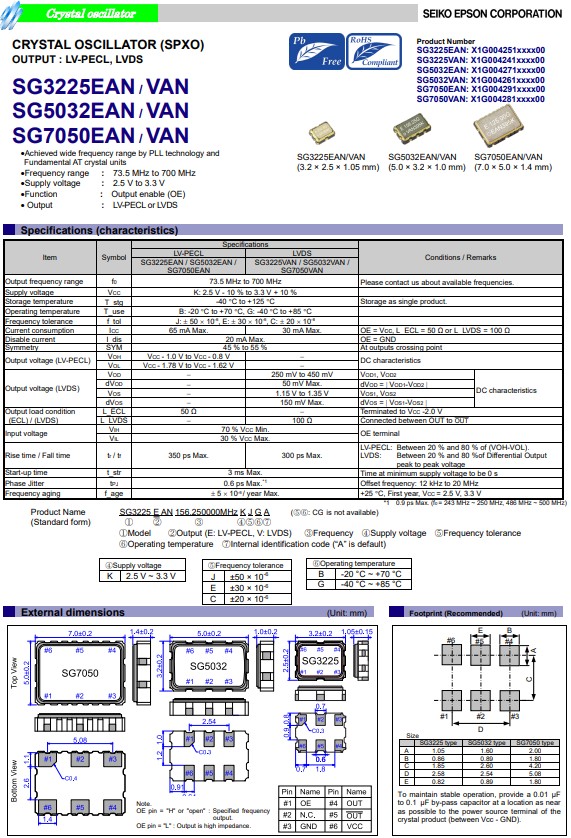

爱普生晶振SG3225VAN，是一款LVDS差分输出晶振，差分晶体振荡器，小体积晶振尺寸3.2x2.5x1.2mm有源晶振，六脚贴片晶振，宽频率范围73.5MHz至700MHz，电源电压2.5V,3.3V低消耗电流，具有高性能,低功耗,低噪声,低抖动,低损耗等特点.被广泛用于通讯设备,机顶盒,光端机,安防设备及各种频率控制设备上
X1G004241002300是一款LVDS差分输出晶振具有高性能低抖动特点
Product Number
Model
Frequency
差分晶体
Output Wave
Supply Voltage
Ope Temperature
X1G004241000100
SG3225VAN
125.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241000400
SG3225VAN
100.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241000500
SG3225VAN
200.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241000600
SG3225VAN
400.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241000800
SG3225VAN
212.500000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241001000
SG3225VAN
148.500000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241001200
SG3225VAN
150.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241001400
SG3225VAN
156.250000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241002000
SG3225VAN
125.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241002300
SG3225VAN
100.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241002400
SG3225VAN
200.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241002500
SG3225VAN
400.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241002600
SG3225VAN
106.250000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241002800
SG3225VAN
74.250000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241002900
SG3225VAN
148.500000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241003100
SG3225VAN
150.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241003200
SG3225VAN
155.520000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241003300
SG3225VAN
156.250000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241003400
SG3225VAN
312.500000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
X1G004241003900
SG3225VAN
125.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-20 to 70 °C
X1G004241004200
SG3225VAN
100.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-20 to 70 °C
| X1G004241006500 | SG3225VAN | 212.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004241006900 | SG3225VAN | 150.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004241007100 | SG3225VAN | 156.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004241010000 | SG3225VAN | 133.333333 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004241010300 | SG3225VAN | 250.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241010500 | SG3225VAN | 80.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241010800 | SG3225VAN | 297.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241010900 | SG3225VAN | 133.330000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241011300 | SG3225VAN | 125.003125 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241011700 | SG3225VAN | 126.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241012000 | SG3225VAN | 322.265625 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241012300 | SG3225VAN | 90.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004241012400 | SG3225VAN | 135.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241012500 | SG3225VAN | 76.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241012600 | SG3225VAN | 360.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241012700 | SG3225VAN | 644.531250 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004241012900 | SG3225VAN | 322.265625 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004241013000 | SG3225VAN | 115.200000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241013100 | SG3225VAN | 600.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241013500 | SG3225VAN | 240.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241013600 | SG3225VAN | 133.333000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241013700 | SG3225VAN | 133.262000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004241013800 | SG3225VAN | 148.351600 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
差分贴片晶振是普通贴片晶振所不能够达到的,差分晶振具有低电平,低抖动,低功耗等特性.差分晶振作为目前行业中高要求,高技术轻薄型晶体振荡器,具有相位低,损耗低的特点,爱普生差分晶振使用于产品中能够很容易地识别小信号,能够从容精确地处理双级信号,对外部电磁干扰(EMI)是高度免疫的,差分石英晶振满足市场需求,实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性。
