福克斯VCXO振荡器,FY5CBJM48.0-T1,低相位噪声晶振
频率：48.000MHz
尺寸：5.0x3.2mm
福克斯VCXO振荡器,FY5CBJM48.0-T1,低相位噪声晶振，美国进口晶振，FOX福克斯晶振，型号：FY5C系列，编码为：FY5CBJM48.0-T1，频率为：48.000MHz，小体积晶振尺寸：5.0x3.2mm封装，VCXO压控晶振，HCMOS输出石英晶体振荡器，六脚贴片晶振，压控晶体振荡器，有源晶体，石英晶振，SMD晶振，电压3.3V，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，低抖动，低电源电压，低功耗，低相位噪声，低电平，高精度，高性能，高品质等特点。有源晶振，被广泛应用于：移动通讯设备，无线网络，蓝牙模块，GPS定位，导航仪，物联网，汽车电子，医疗设备，安防设备，数码电子，智能家居等应用。

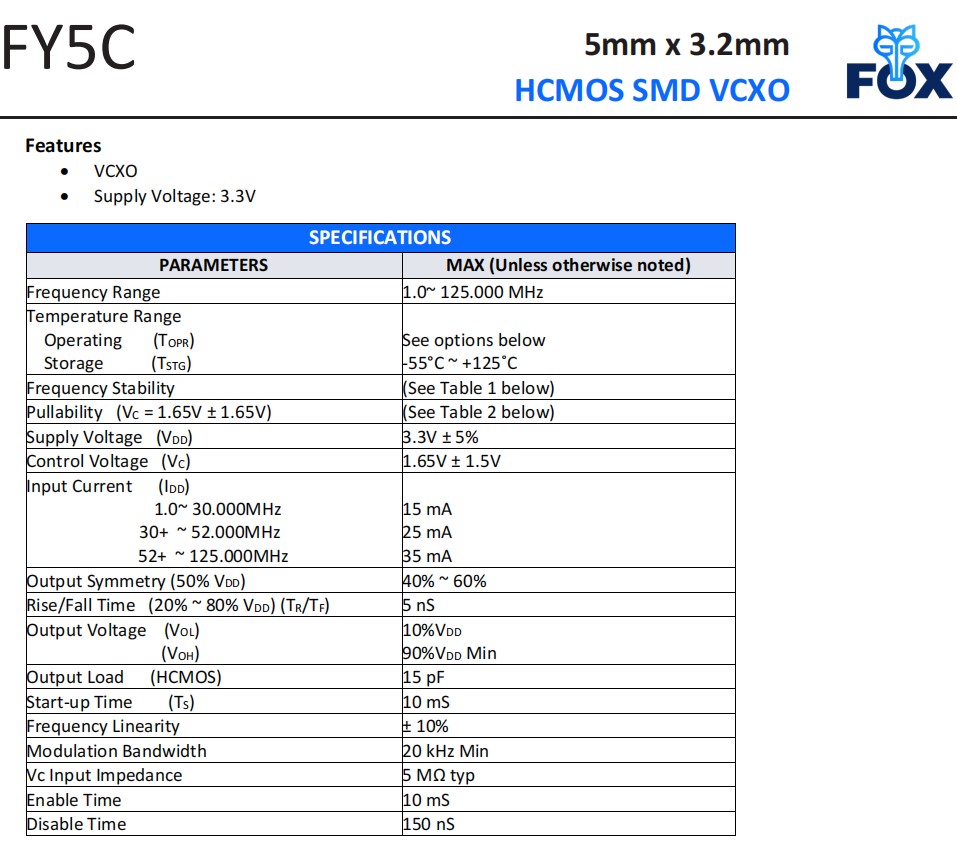

福克斯VCXO振荡器,FY5CBJM48.0-T1,低相位噪声晶振,参数表
PARAMETERS
MAX (Unless otherwise noted)
Frequency Range
48.000 MHz
Temperature Range
See options below
-55°C ~ +125?C
Operating
Storage
(TOPR)
(TSTG)
Frequency Stability
(See Table 1 below)
Pullability (VC = 1.65V ± 1.65V)
(See Table 2 below)
Supply Voltage (VDD)
3.3V ± 5%
Control Voltage (VC)
1.65V ± 1.5V
Input Current (IDD)
1.0~ 30.000MHz
30+ ~ 52.000MHz
52+ ~ 125.000MHz
15 mA
25 mA
35 mA
Output Symmetry (50% VDD)
40% ~ 60%
Rise/Fall Time (20% ~ 80% VDD) (TR/TF)
5 nS
Output Voltage (VOL)
(VOH)
10%VDD
90%VDD Min
Output Load (HCMOS)
15 pF
Start-up Time (TS)
10 mS
Frequency Linearity
± 10%
Modulation Bandwidth
20 kHz Min
Vc Input Impedance
5 M? typ
Enable Time
10 mS
Disable Time
150 nS

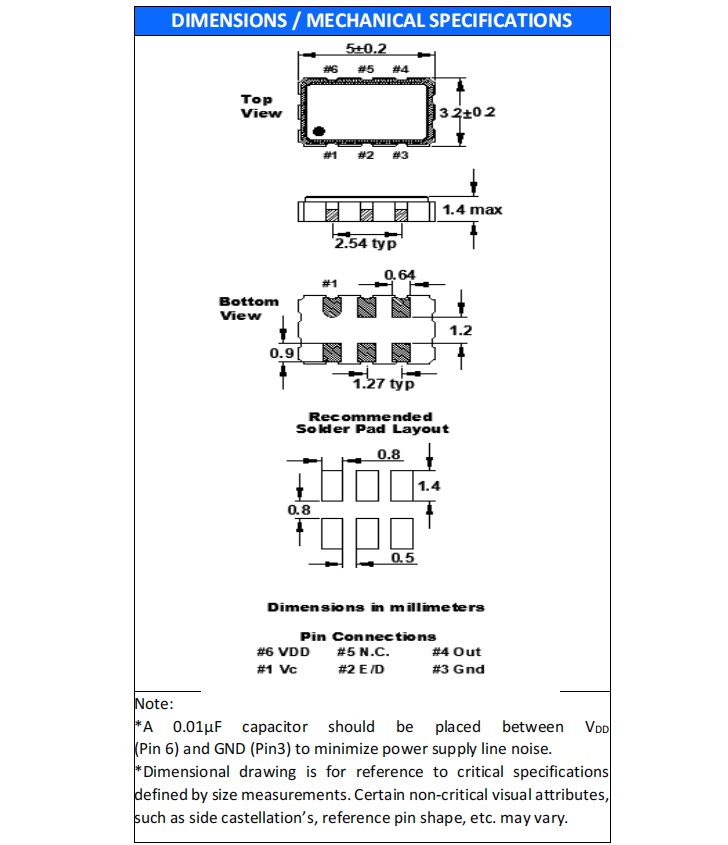

福克斯VCXO振荡器,FY5CBJM48.0-T1,低相位噪声晶振,尺寸图
福克斯VCXO振荡器,FY5CBJM48.0-T1,低相位噪声晶振
压控晶振用石英晶体作频率控制元件，其振荡频率在工作温度内是稳定的。当我们对VCXO晶振的进行调谐时，振荡频率会发生改变；但偏离标称频率的各个频率值在工作温度范围内同样是稳定的。必须注意，对于一个给定的频率而言，频率稳定度要求越高，要得到大范围的牵引度就越困难。采用硅解决方案，不能获得良好的频率稳定度。这是因为硅存在颤动噪声和相位噪声所致。VCXO压控晶振的采用了SMD晶振，频率异常稳定，是目前最好的频率控制器件。
| 高品质石英晶振 | 品牌 | 型号 | 类型 | 频率 | 电压 | 包装/封装 |
| FOX924B-12.000 | Fox晶振 | FOX924 | TCXO | 12MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-16.000 | Fox晶振 | FOX924 | TCXO | 16MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-20.000 | Fox晶振 | FOX924 | TCXO | 20MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-27.000 | Fox晶振 | FOX924 | TCXO | 27MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-10.000 | Fox晶振 | FOX924 | TCXO | 10MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-14.7456 | Fox晶振 | FOX924 | TCXO | 14.7456MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-25.000 | Fox晶振 | FOX924 | TCXO | 25MHz | 3.3V | 4-SMD, No Lead |
| F135-25 | Fox晶振 | F135 | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F335-40 | Fox晶振 | F335 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F316R-20.000 | Fox晶振 | F310R | XO (Standard) | 20MHz | 1.8V | 4-SMD, No Lead |
| F316R-24.000 | Fox晶振 | F310R | XO (Standard) | 24MHz | 1.8V | 4-SMD, No Lead |
| FOX924B-12.288 | Fox晶振 | FOX924 | TCXO | 12.288MHz | 3.3V | 4-SMD, No Lead |
| F32K-327 | Fox晶振 | F32K | XO (Standard) | 32.768kHz | 3.3V | 4-SMD, No Lead |
| FOX924B-19.440 | Fox晶振 | FOX924 | TCXO | 19.44MHz | 3.3V | 4-SMD, No Lead |
| FOX914B-20.000 | Fox晶振 | FOX914 | TCXO | 20MHz | 3V | 4-SMD, No Lead |
| FOX914B-12.800 | Fox晶振 | FOX914 | TCXO | 12.8MHz | 3V | 4-SMD, No Lead |
| F535L-25 | Fox晶振 | F535L | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F535L-33.333 | Fox晶振 | F535L | XO (Standard) | 33.333MHz | 3.3V | 4-SMD, No Lead |
| F235-40 | Fox晶振 | F235 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F235-48 | Fox晶振 | F235 | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F535L-24.576 | Fox晶振 | F535L | XO (Standard) | 24.576MHz | 3.3V | 4-SMD, No Lead |
| F535L-24 | Fox晶振 | F535L | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F535L-50 | Fox晶振 | F535L | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F535L-27 | Fox晶振 | F535L | XO (Standard) | 27MHz | 3.3V | 4-SMD, No Lead |
| F535L-12 | Fox晶振 | F535L | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F535L-48 | Fox晶振 | F535L | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F535L-10 | Fox晶振 | F535L | XO (Standard) | 10MHz | 3.3V | 4-SMD, No Lead |
| F535L-40 | Fox晶振 | F535L | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F316R-33.333 | Fox晶振 | F310R | XO (Standard) | 33.333MHz | 1.8V | 4-SMD, No Lead |
| F216R-24.000 | Fox晶振 | F210R | XO (Standard) | 24MHz | 1.8V | 4-SMD, No Lead |
| F235-12 | Fox晶振 | F235 | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F235-50 | 福克斯晶振 | F235 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F235-24 | Fox晶振 | F235 | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F335-25 | Fox晶振 | F335 | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F335-50 | Fox晶振 | F335 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F335-48 | Fox晶振 | F335 | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F335-12 | Fox晶振 | F335 | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F335-16 | Fox晶振 | F335 | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F316R-48.000 | Fox晶振 | F310R | XO (Standard) | 48MHz | 1.8V | 4-SMD, No Lead |
| F535L-16 | Fox晶振 | F535L | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F316R-12.288 | Fox晶振 | F310R | XO (Standard) | 12.288MHz | 1.8V | 4-SMD, No Lead |
| F316R-14.31818 | Fox晶振 | F310R | XO (Standard) | 14.31818MHz | 1.8V | 4-SMD, No Lead |
| F316R-16.000 | Fox晶振 | F310R | XO (Standard) | 16MHz | 1.8V | 4-SMD, No Lead |
| F316R-18.432 | Fox晶振 | F310R | XO (Standard) | 18.432MHz | 1.8V | 4-SMD, No Lead |
| F316R-26.000 | Fox晶振 | F310R | XO (Standard) | 26MHz | 1.8V | 4-SMD, No Lead |
| F316R-27.000 | Fox晶振 | F310R | XO (Standard) | 27MHz | 1.8V | 4-SMD, No Lead |
| F316R-30.000 | Fox晶振 | F310R | XO (Standard) | 30MHz | 1.8V | 4-SMD, No Lead |
| F316R-44.000 | Fox晶振 | F310R | XO (Standard) | 44MHz | 1.8V | 4-SMD, No Lead |
| F216R-16.000 | Fox晶振 | F210R | XO (Standard) | 16MHz | 1.8V | 4-SMD, No Lead |
| F216R-24.576 | Fox晶振 | F210R | XO (Standard) | 24.576MHz | 1.8V | 4-SMD, No Lead |
| F216R-27.000 | Fox晶振 | F210R | XO (Standard) | 27MHz | 1.8V | 4-SMD, No Lead |
| F216R-40.000 | Fox晶振 | F210R | XO (Standard) | 40MHz | 1.8V | 4-SMD, No Lead |
| F216R-44.000 | Fox晶振 | F210R | XO (Standard) | 44MHz | 1.8V | 4-SMD, No Lead |
| F216R-48.000 | Fox晶振 | F210R | XO (Standard) | 48MHz | 1.8V | 4-SMD, No Lead |
| F316R-24.576 | Fox晶振 | F310R | XO (Standard) | 24.576MHz | 1.8V | 4-SMD, No Lead |
| F316R-50.000 | Fox晶振 | F310R | XO (Standard) | 50MHz | 1.8V | 4-SMD, No Lead |
| F4100-400 | Fox晶振 | F4100 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F4100-500 | Fox晶振 | F4100 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F235-16 | Fox晶振 | F235 | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F235-25 | Fox晶振 | F235 | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F335-24 | Fox晶振 | F335 | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F135-12 | Fox晶振 | F135 | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F135-16 | Fox晶振 | F135 | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F135-24 | Fox晶振 | F135 | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F135-40 | Fox晶振 | F135 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F135-48 | Fox晶振 | F135 | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F135-50 | Fox晶振 | F135 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| 819A-10-1 | Fox晶振 | F210R | XO (Standard) | 10MHz | 1.8V | 4-SMD, No Lead |
| FOX914B-19.200 | Fox晶振 | FOX914 | TCXO | 19.2MHz | 3V | 4-SMD, No Lead |
| FOX914B-19.440 | Fox晶振 | FOX914 | TCXO | 19.44MHz | 3V | 4-SMD, No Lead |
| FOX914B-26.000 | Fox晶振 | FOX914 | TCXO | 26MHz | 3V | 4-SMD, No Lead |
| F316R-12.000 | Fox晶振 | F310R | XO (Standard) | 12MHz | 1.8V | 4-SMD, No Lead |
| F3345R 20.0000/TR | Fox晶振 | F3345 | XO (Standard) | 20MHz | 5V | 4-SMD, No Lead |
| F3355-6.0MHZ | Fox晶振 | F3355 | XO (Standard) | 6MHz | 4.5 V ~ 5.5 V | 4-SMD, No Lead |
| 121-6-1 | Fox晶振 | F4102R | XO (Standard) | - | 5V | 4-SMD, No Lead |
| 092-80-15 | Fox晶振 | F3345 | XO (Standard) | 80MHz | 5V | 4-SMD, No Lead |
| 840C-12-1 | Fox晶振 | FOX922 | VCTCXO | 12MHz | 3.3V | 6-SMD, No Lead |
| FOX465 | Fox晶振 | FOX465 | XO (Standard) | 32.768kHz | 3.3V | 4-SMD, No Lead |
| F254-327 | Fox晶振 | F254 | XO (Standard) | 32.768kHz | 3.3V | 4-SMD, No Lead |
