ECS-1612MV-250-CN-TR多电压振荡器非常适合小型便携式应用

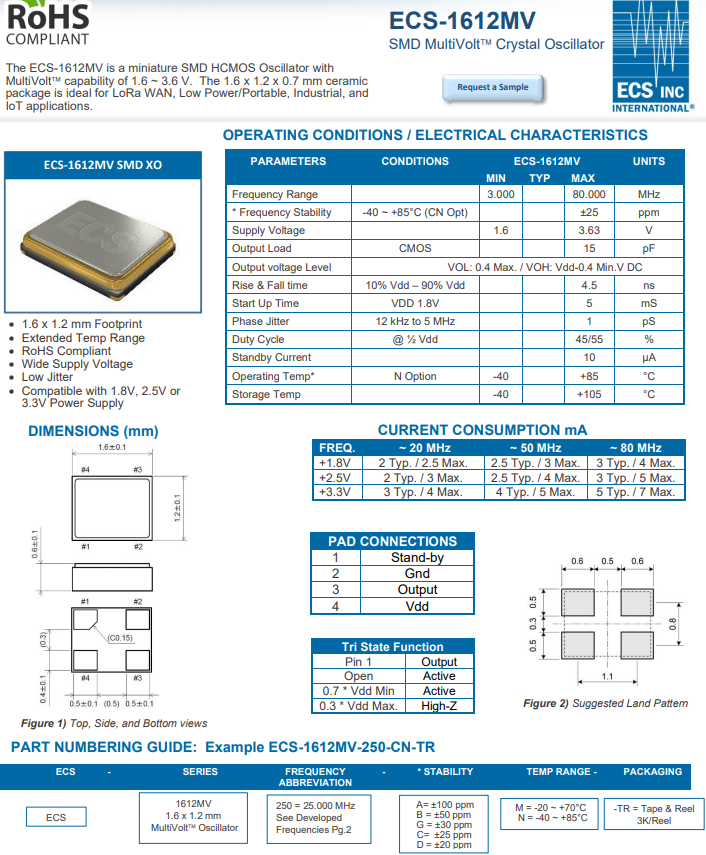

ECS贴片晶振ECS-1612MV是低功耗、固定频率、低抖动、MultiVolt表面贴装晶体振荡器，小体积采用1.6x1.2x0.7mm封装四脚贴片晶振，以节省电路板空间。MultiVolt特性允许用户将同一器件用于多种设计，降低认证要求，并减少库存。扩展温度范围，宽电源电压，兼容1.8V、2.5V或3.3V电源，符合RoHS标准，表面贴装MultiVolt晶体振荡器非常适合低功耗、便携式、工业和物联网应用。
ECS-1612MV-250-CN-TR多电压振荡器非常适合小型便携式应用
ECS-1612MV-250-CN-TR多电压振荡器非常适合小型便携式应用
特点:
小体积尺寸：1.6x1.2mm四脚贴片晶振
多伏特1.6V~3.63V 有源晶体
兼容1.8V、2.5V或3.3V电源
低抖动：1 pS
GM选项：30ppm，-20℃至+70℃
CN选项：25ppm，-40℃至+85℃
符合RoHS 2和REACH标准
MSL 1号
铅饰面金
应用于：物联网，存储设备，集装箱卸货与传输系统，航行，医疗(非维持生命)，移动设备，产业的，无线设备，通用微处理器，测试设备，IP摄像机
| 图片 | 进口石英晶体振荡器 | 频率 | 频率稳定性 | 工作温度 |
|
ECS-1612MV-080-CN-TR | 8 MHz | ±25ppm | -40°C ~ +85°C |
|
|
ECS-1612MV-120-CN-TR | 12 MHz | ±25ppm | -40°C ~ +85°C |
|
|
ECS-1612MV-122.8-CN-TR | 12.288 MHz | ±25ppm | -40°C ~ +85°C |
|
|
ECS-1612MV-192-CN-TR | 19.2 MHz | ±25ppm | -40°C ~ +85°C |
|
|
ECS-1612MV-240-CN-TR | 24 MHz | ±25ppm | -40°C ~ +85°C |
|
|
ECS-1612MV-250-CN-TR | 25 MHz | ±25ppm | -40°C ~ +85°C |
|
|
ECS-1612MV-260-CN-TR | 26 MHz | ±25ppm | -40°C ~ +85°C |
|
|
ECS-1612MV-500-CN-TR | 50 MHz | ±25ppm | -40°C ~ +85°C |
