当前位置：首页 » 行业资讯 » NX51SA系列小体积晶振尺寸5032mm晶振,NX51500001,可编程晶体振荡器,ECERA差分晶振

NX51SA系列小体积晶振尺寸5032mm晶振,NX51500001,可编程晶体振荡器,ECERA差分晶振

来源：康华尔查看手机网址

扫一扫!

NX51SA系列小体积晶振尺寸5032mm晶振,NX51500001,可编程晶体振荡器,ECERA差分晶振

扫一扫!

浏览：- 发布日期：2022-07-16 10:32:30【大中小】

分享到：

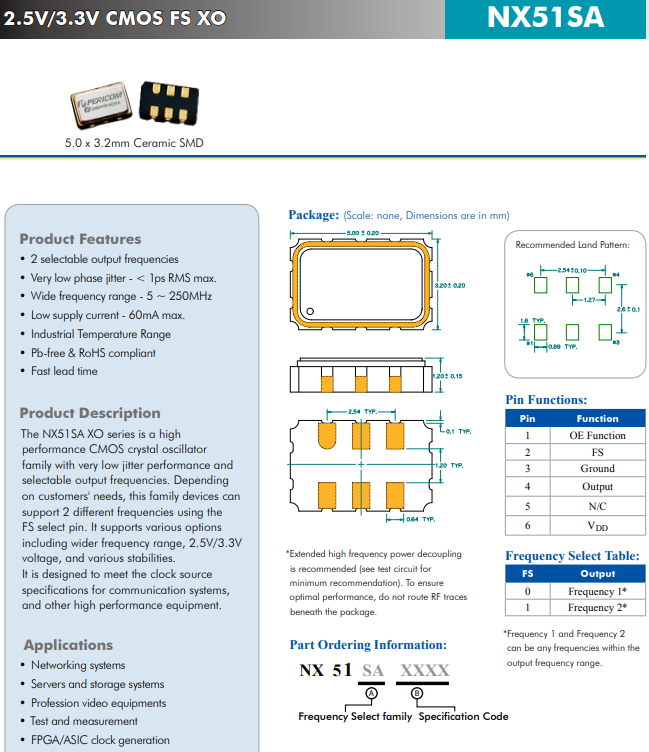

NX51SA XO系列是高性能CMOS晶体振荡器系列，小体积晶振尺寸5.0mmx3.2mm，CMOS 2频可编程晶振XO，具有极低的抖动性能和可选的输出频率。根据客户的需求，该系列器件可以使用FS选择引脚支持2个不同的频率。它支持多种选择，包括更宽的频率范围、2.5V/3.3V电压和各种稳定性。它旨在满足通信系统和其他高性能设备的时钟源规范。

特征：
2个可选输出频率晶体振荡器
非常低的相位抖动 -<1ps RMS max.
宽频率范围 - 5~250MHz
低电源电流 - 最大60mA。
工业温度范围
无铅且符合RoHS标准
交货时间快
应用：
网络系统
服务器和存储系统
专业视频设备
测试和测量
FPGA/ASIC时钟生成

NX51SA系列小体积晶振尺寸5032mm晶振,NX51500001,可编程晶体振荡器,ECERA差分晶振

FN8000056	Diodes Incorporated	SaRonix-eCera™ FN	80MHz	±50ppm	-40°C ~ 85°C
FN8000059	Diodes Incorporated	SaRonix-eCera™ FN	80MHz	±50ppm	-20°C ~ 70°C
FN8330020	Diodes Incorporated	SaRonix-eCera™ FN	83.33MHz	±50ppm	-40°C ~ 85°C
FN8500004	Diodes Incorporated	SaRonix-eCera™ FN	85MHz	±50ppm	-20°C ~ 70°C
FN9000013	Diodes Incorporated	SaRonix-eCera™ FN	90MHz	±50ppm	-20°C ~ 70°C
FN9600006	Diodes Incorporated	SaRonix-eCera™ FN	96MHz	±25ppm	-20°C ~ 70°C
FN9830014	Diodes Incorporated	SaRonix-eCera™ FN	98.304MHz	±50ppm	-20°C ~ 70°C
FNA000068	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-40°C ~ 85°C
FNA000070	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-20°C ~ 70°C
FNA000071	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-40°C ~ 85°C
FNA000072	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-20°C ~ 70°C
FNA000073	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm	-20°C ~ 70°C
FNA620047	Diodes Incorporated	SaRonix-eCera™ FN	106.25MHz	±50ppm	-20°C ~ 70°C
FNA620048	Diodes Incorporated	SaRonix-eCera™ FN	106.25MHz	±25ppm	-20°C ~ 70°C
FNA620049	Diodes Incorporated	SaRonix-eCera™ FN	106.25MHz	±50ppm	-40°C ~ 85°C
FNA620050	Diodes Incorporated	SaRonix-eCera™ FN	106.25MHz	±25ppm	-20°C ~ 70°C
FNA620052	Diodes Incorporated	SaRonix-eCera™ FN	106.25MHz	±50ppm	-40°C ~ 85°C
FNA800007	Diodes Incorporated	SaRonix-eCera™ FN	108MHz	±50ppm	-20°C ~ 70°C
FNA800008	Diodes Incorporated	SaRonix-eCera™ FN	108MHz	±25ppm	-20°C ~ 70°C
FNC500106	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±25ppm	-20°C ~ 70°C
FNC500126	Diodes Incorporated	SaRonix-eCera™ FN	125.001MHz	±25ppm	-20°C ~ 70°C
FNC500128	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-20°C ~ 70°C
FNC500130	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-40°C ~ 85°C
FNC500132	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±25ppm	-20°C ~ 70°C
FNC500138	Diodes Incorporated	SaRonix-eCera™ FN	125.003MHz	±25ppm	-20°C ~ 70°C
FNC510001	Diodes Incorporated	SaRonix-eCera™ FN	125.12Mhz	±50ppm	-40°C ~ 85°C

FNC700004	Diodes Incorporated	SaRonix-eCera™ FN	127MHz	±50ppm	-20°C ~ 70°C
FND300015	Diodes Incorporated	SaRonix-eCera™ FN	133MHz	±25ppm	-20°C ~ 70°C
FND300017	Diodes Incorporated	SaRonix-eCera™ FN	133MHz	±50ppm	-20°C ~ 70°C
FND300020	Diodes Incorporated	SaRonix-eCera™ FN	133MHz	±50ppm	-40°C ~ 85°C
FND330007	Diodes Incorporated	SaRonix-eCera™ FN	133.333MHz	±50ppm	-20°C ~ 70°C
PBF000008	Diodes Incorporated	SaRonix-eCera™ PB	150MHz	±50ppm	-20°C ~ 70°C
PBF550004	Diodes Incorporated	SaRonix-eCera™ PB	155.52MHz	±50ppm	-20°C ~ 70°C
PBF930003	Diodes Incorporated	SaRonix-eCera™ PB	159.375MHz	±50ppm	-20°C ~ 70°C
PBG110003	Diodes Incorporated	SaRonix-eCera™ PB	161.133MHz	±50ppm	-20°C ~ 70°C
PD5000002	Diodes Incorporated	SaRonix-eCera™ PD	50MHz	±50ppm	-20°C ~ 70°C
PD5000004	Diodes Incorporated	SaRonix-eCera™ PD	50MHz	±50ppm	-20°C ~ 70°C
PD6250003	Diodes Incorporated	SaRonix-eCera™ PD	62.5MHz	±50ppm	-20°C ~ 70°C
PD7500001	Diodes Incorporated	SaRonix-eCera™ PD	75MHz	±50ppm	-20°C ~ 70°C
PD7770001	Diodes Incorporated	SaRonix-eCera™ PD	77.76MHz	±50ppm	-20°C ~ 70°C
PDA620003	Diodes Incorporated	SaRonix-eCera™ PD	106.25MHz	±50ppm	-20°C ~ 70°C
PDC500003	Diodes Incorporated	SaRonix-eCera™ PD	125MHz	±50ppm	-20°C ~ 70°C
PDF000003	Diodes Incorporated	SaRonix-eCera™ PD	150MHz	±50ppm	-20°C ~ 70°C
PDF550003	Diodes Incorporated	SaRonix-eCera™ PD	155.52MHz	±50ppm	-20°C ~ 70°C
PDF620003	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-20°C ~ 70°C
PDF930002	Diodes Incorporated	SaRonix-eCera™ PD	159.375MHz	±50ppm	-20°C ~ 70°C
PDG110003	Diodes Incorporated	SaRonix-eCera™ PD	161.133MHz	±50ppm	-20°C ~ 70°C
PXA620006	Diodes Incorporated	SaRonix-eCera™ PX	106.25MHz	±50ppm	-20°C ~ 70°C
PXA620008	Diodes Incorporated	SaRonix-eCera™ PX	106.25MHz	±50ppm	-20°C ~ 70°C
PXF000010	Diodes Incorporated	SaRonix-eCera™ PX	150MHz	±50ppm	-20°C ~ 70°C
PXF000011	Diodes Incorporated	SaRonix-eCera™ PX	150MHz	±50ppm	-20°C ~ 70°C

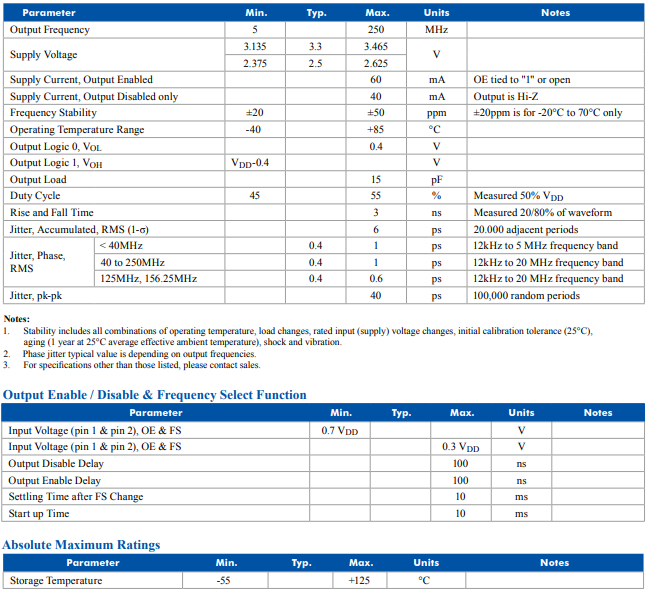

Product Parameters

ProductSeries	NX5
Family	XO
Output Logic	CMOS
Supply Voltage (V)	3.3, 2.5
Freq Range (MHz)	5 to 250
Jitter RMS (ps)	<1
PkgType	Ceramic Seam
Package Size (mm)	5.0 x 3.2 x 1.5
Pads	6

NX51SA系列小体积晶振尺寸5032mm晶振,NX51500001,可编程晶体振荡器,ECERA差分晶振

产品参数：

产品系列 NX5
家庭 XO 有源晶体
输出逻辑 CMOS
电源电压 3.3V, 2.5V
频率范围 (MHz) 5到250
抖动均方根 (ps) <1
包装类型陶瓷缝
包装尺寸 5.0x3.2x1.5mm
垫 6脚

PXF620009	Diodes Incorporated	SaRonix-eCera™ PX	156.25MHz	±50ppm	-20°C ~ 70°C
PXF620014	Diodes Incorporated	SaRonix-eCera™ PX	156.25MHz	±50ppm	-20°C ~ 70°C
SPA000001	Diodes Incorporated	SaRonix-eCera™ SP	100MHz	±50ppm	-40°C ~ 85°C
SPA000002	Diodes Incorporated	SaRonix-eCera™ SP	100MHz	±50ppm	-40°C ~ 85°C
SQA000002	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
NX5021E0312.500000	Diodes Incorporated	SaRonix-eCera™ NX	312.5MHz	±50ppm	-40°C ~ 85°C
PBF550007	Diodes Incorporated	SaRonix-eCera™ PB	155.52MHz	±50ppm	-40°C ~ 85°C
PBF620012	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-40°C ~ 85°C
PBF930001	Diodes Incorporated	SaRonix-eCera™ PB	159.375MHz	±50ppm	-40°C ~ 85°C
PBG110005	Diodes Incorporated	SaRonix-eCera™ PB	161.133MHz	±50ppm	-40°C ~ 85°C
PD5000001	Diodes Incorporated	SaRonix-eCera™ PD	50MHz	±50ppm	-40°C ~ 85°C
PD6250002	Diodes Incorporated	SaRonix-eCera™ PD	62.5MHz	±50ppm	-40°C ~ 85°C
PD7500002	Diodes Incorporated	SaRonix-eCera™ PD	75MHz	±50ppm	-40°C ~ 85°C
PD7770002	Diodes Incorporated	SaRonix-eCera™ PD	77.76MHz	±50ppm	-40°C ~ 85°C
PDA000001	Diodes Incorporated	SaRonix-eCera™ PD	100MHz	±50ppm	-40°C ~ 85°C
PDA620001	Diodes Incorporated	SaRonix-eCera™ PD	106.25MHz	±50ppm	-40°C ~ 85°C
PDC500001	Diodes Incorporated	SaRonix-eCera™ PD	125MHz	±50ppm	-40°C ~ 85°C
PDF000002	Diodes Incorporated	SaRonix-eCera™ PD	150MHz	±50ppm	-40°C ~ 85°C
PDF550001	Diodes Incorporated	SaRonix-eCera™ PD	155.52MHz	±50ppm	-40°C ~ 85°C
PDF930001	Diodes Incorporated	SaRonix-eCera™ PD	159.375MHz	±50ppm	-40°C ~ 85°C
PDG110001	Diodes Incorporated	SaRonix-eCera™ PD	161.133MHz	±50ppm	-40°C ~ 85°C
PXA000012	Diodes Incorporated	SaRonix-eCera™ PX	100MHz	±50ppm	-40°C ~ 85°C
PXA620004	Diodes Incorporated	SaRonix-eCera™ PX	106.25MHz	±50ppm	-40°C ~ 85°C
PXA620005	Diodes Incorporated	SaRonix-eCera™ PX	106.25MHz	±50ppm	-40°C ~ 85°C
PXC500011	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-40°C ~ 85°C

NX51SA系列小体积晶振尺寸5032mm晶振,NX51500001,可编程晶体振荡器,ECERA差分晶振

NX51SA CMOS 3.32.5 5 到 250 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm CMOS 2 频可编程 XO
NX51SB CMOS 3.32.5 5 到 250 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm CMOS差分晶体振荡器
NX52SA LVPECL 3.32.5 5 到 1000 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm LVPECL 2频可编程XO
NX52SB LVPECL 3.32.5 5 到 1000 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm LVPECL 4频可编程XO
NX53SA LVDS 3.32.5 5 到 1000 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm LVDS 2 频可编程 XO
NX53SB LVDS 3.32.5 5 到 1000 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm LVDS 4 频可编程 XO
NX54SA HCSL 3.32.5 5 至 212.5 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm HCSL 2频可编程XO
NX54SB HCSL 3.32.5 5 至 212.5 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm HCSL 四频可编程XO

PXF620011	Diodes Incorporated	SaRonix-eCera™ PX	156.25MHz	±50ppm	-40°C ~ 85°C
PXF620012	Diodes Incorporated	SaRonix-eCera™ PX	156.25MHz	±50ppm	-40°C ~ 85°C
SNI750005	Diodes Incorporated	SaRonix-eCera™ SN	187.5MHz	±50ppm	-20°C ~ 70°C
SNK000006	Diodes Incorporated	SaRonix-eCera™ SN	200MHz	±50ppm	-20°C ~ 70°C
SNL250004	Diodes Incorporated	SaRonix-eCera™ SN	212.5MHz	±50ppm	-20°C ~ 70°C
PD6250001	Diodes Incorporated	SaRonix-eCera™ PD	62.5MHz	±25ppm	-20°C ~ 70°C
PDA000003	Diodes Incorporated	SaRonix-eCera™ PD	100MHz	±25ppm	-20°C ~ 70°C
PDA620002	Diodes Incorporated	SaRonix-eCera™ PD	106.25MHz	±25ppm	-20°C ~ 70°C
PDC500002	Diodes Incorporated	SaRonix-eCera™ PD	125MHz	±25ppm	-20°C ~ 70°C
PXA000011	Diodes Incorporated	SaRonix-eCera™ PX	100MHz	±25ppm	-20°C ~ 70°C
PXC500008	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±25ppm	-20°C ~ 70°C
PXC500009	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±25ppm	-20°C ~ 70°C
PXF550003	Diodes Incorporated	SaRonix-eCera™ PX	155.52MHz	±25ppm	-20°C ~ 70°C
PXF620010	Diodes Incorporated	SaRonix-eCera™ PX	156.25MHz	±25ppm	-20°C ~ 70°C
SQF620001	Diodes Incorporated	SaRonix-eCera™ SQ	156.25MHz	±25ppm	-20°C ~ 70°C
PBF550006	Diodes Incorporated	SaRonix-eCera™ PB	155.52MHz	±20ppm	-20°C ~ 70°C
PBF620010	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±20ppm	-20°C ~ 70°C
PBG110004	Diodes Incorporated	SaRonix-eCera™ PB	161.133MHz	±20ppm	-20°C ~ 70°C
PDF550002	Diodes Incorporated	SaRonix-eCera™ PD	155.52MHz	±20ppm	-20°C ~ 70°C
PDF620002	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±20ppm	-20°C ~ 70°C
PDG110002	Diodes Incorporated	SaRonix-eCera™ PD	161.133MHz	±20ppm	-20°C ~ 70°C
PXA000009	Diodes Incorporated	SaRonix-eCera™ PX	100MHz	±20ppm	-20°C ~ 70°C
JX5021E0312.500000	Diodes Incorporated	SaRonix-eCera™ JX	312MHz	±50ppm	-40°C ~ 85°C
FN9830010	Diodes Incorporated	SaRonix-eCera™ FN	98.304MHz	±50ppm	-20°C ~ 70°C
FNA000074	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm	-40°C ~ 85°C

NX51SA系列小体积晶振尺寸5032mm晶振,NX51500001,可编程晶体振荡器,ECERA差分晶振

我们提供一流的晶体(Xtal)和晶体振荡器(XO)，针对您的设计要求进行了优化。
我们广泛的晶体和晶体振荡器提供：
输出频率范围从kHz到GHz
完整的输出组合：CMOS、CML、LVPECL、LVDS、削波正弦波和HCSL
完整的XO振荡器产品组合，包括标准XO、VCXO、TCXO到超低抖动和高温XO
从1.0V到3.3V的多个电压范围（甚至是传统的 5V）
大量SMT封装选项组合，可满足您的封装要求
