亚陶发布引以为傲的XO振荡器编码NX3261E0125.000000
亚陶发布引以为傲的XO振荡器编码NX3261E0125.000000,百利通亚陶晶振公司自成立以来,通过自身的努力与奋斗,实现了自我的价值,同时致力于帮助广大用户解决在晶体行业所遇到问题,以及生产出来高质量高品质的优质晶振产品,以满足用户不同的需求,经过长期的厚积薄发,针对性开发各种高质量的产品,好比这款高性能低抖动的有源晶振产品，优越的性能,轻薄小的体积,使得其成为广大用户的首要选择之一。
| Manufacturer Part Number原厂代码 | Manufacturer品牌 | Series型号 | Frequency 频率 | Frequency Stability频率稳定度 | Operating Temperature 工作温度 |
| FN3710001 | Diodes晶振 | SaRonix-eCera™ FN | 37.125MHz | ±25ppm | -40°C ~ 85°C |
| FN3840008 | Diodes晶振 | SaRonix-eCera™ FN | 38.4MHz | ±20ppm | -20°C ~ 70°C |
| FN4000162 | Diodes晶振 | SaRonix-eCera™ FN | 40MHz | ±20ppm | -20°C ~ 70°C |
| FN4800077 | Diodes晶振 | SaRonix-eCera™ FN | 48MHz | ±25ppm | -40°C ~ 85°C |
| FN5000118 | Diodes晶振 | SaRonix-eCera™ FN | 50MHz | ±25ppm | -40°C ~ 85°C |
| FN6660075 | Diodes晶振 | SaRonix-eCera™ FN | 66.67MHz | ±25ppm | -40°C ~ 85°C |
| FN6660076 | Diodes晶振 | SaRonix-eCera™ FN | 66.66MHz | ±25ppm | -40°C ~ 85°C |
| FNA620051 | Diodes晶振 | SaRonix-eCera™ FN | 106.25MHz | ±50ppm | -20°C ~ 70°C |
| FND330009 | Diodes晶振 | SaRonix-eCera™ FN | 133.33MHz | ±50ppm | -20°C ~ 70°C |
| SXF000007 | Diodes晶振 | SaRonix-eCera™ SX | 150MHz | ±50ppm | -20°C ~ 70°C |
| SXF550007 | Diodes晶振 | SaRonix-eCera™ SX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| SXF620007 | Diodes晶振 | SaRonix-eCera™ SX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| UM2600002 | Diodes晶振 | SaRonix-eCera™ UM | 26MHz | ±50ppm | -30°C ~ 85°C |
| NX3261E0125.000000 | Diodes晶振 | SaRonix-eCera™ NX | 125MHz | ±50ppm | -40°C ~ 85°C |
| FN6660077 | Diodes晶振 | SaRonix-eCera™ FN | 66.666MHz | ±25ppm | -20°C ~ 70°C |
| FN6660079 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±50ppm | -20°C ~ 70°C |
| FN6660080 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±50ppm | -40°C ~ 85°C |
| FN7000003 | Diodes晶振 | SaRonix-eCera™ FN | 70MHz | ±50ppm | -40°C ~ 85°C |
| FN7200004 | Diodes晶振 | SaRonix-eCera™ FN | 72MHz | ±50ppm | -20°C ~ 70°C |
| FN7400001 | Diodes晶振 | SaRonix-eCera™ FN | 74MHz | ±50ppm | -20°C ~ 70°C |
| FN7420006 | Diodes晶振 | SaRonix-eCera™ FN | 74.25MHz | ±50ppm | -20°C ~ 70°C |
| FN7500038 | Diodes晶振 | SaRonix-eCera™ FN | 75MHz | ±50ppm | -20°C ~ 70°C |
| FN7500039 | Diodes晶振 | SaRonix-eCera™ FN | 75MHz | ±25ppm | -20°C ~ 70°C |
| FN7500045 | Diodes晶振 | SaRonix-eCera™ FN | 75MHz | ±50ppm | -40°C ~ 85°C |
| FN7500046 | Diodes晶振 | SaRonix-eCera™ FN | 75MHz | ±25ppm | -20°C ~ 70°C |
| FN7770021 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±50ppm | -40°C ~ 85°C |
| FN7770022 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±50ppm | -40°C ~ 85°C |
| FN7770023 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±50ppm | -20°C ~ 70°C |
| FN7770024 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±25ppm | -20°C ~ 70°C |
| FN7770025 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±50ppm | -20°C ~ 70°C |
| FN7770026 | Diodes振荡器 | SaRonix-eCera™ FN | 77.76MHz | ±25ppm | -20°C ~ 70°C |
| NX5061E0156.250000 | Diodes晶振 | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| YNWMAX153 | Diodes晶振 | SaRonix-eCera™ YN | 153.6MHz | ±35ppm | -40°C ~ 85°C |
| NX3232E0156.250000 | Diodes晶振 | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| SXF000005 | Diodes晶振 | SaRonix-eCera™ SX | 150MHz | ±50ppm | -40°C ~ 85°C |
| SXF550009 | Diodes晶振 | SaRonix-eCera™ SX | 155.52MHz | ±50ppm | -40°C ~ 85°C |
| SXF620003 | Diodes晶振 | SaRonix-eCera™ SX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| FDC500016 | Diodes晶振 | SaRonix-eCera™ FD | 125MHz | ±20ppm | -20°C ~ 70°C |
| FDC500019 | Diodes晶振 | SaRonix-eCera™ FD | 125MHz | ±20ppm | -20°C ~ 70°C |
| UM2600001 | Diodes晶振 | SaRonix-eCera™ UM | 26MHz | ±20ppm | -30°C ~ 85°C |
| FRSONT077 | Diodes晶振 | SaRonix-eCera™ FR | 77.76MHz | ±50ppm | -40°C ~ 85°C |
| SXF550011 | Diodes晶振 | SaRonix-eCera™ SX | 155.52MHz | ±20ppm | -20°C ~ 70°C |
| FN6660081 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±25ppm | -40°C ~ 85°C |
| FN7410004 | Diodes晶振 | SaRonix-eCera™ FN | 74.175MHz | ±25ppm | -40°C ~ 85°C |
| FN7420007 | Diodes晶振 | SaRonix-eCera™ FN | 74.25MHz | ±25ppm | -40°C ~ 85°C |
| FN7770028 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±25ppm | -40°C ~ 85°C |
| FN7770029 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±20ppm | -20°C ~ 70°C |
| FN8000056 | Diodes晶振 | SaRonix-eCera™ FN | 80MHz | ±50ppm | -40°C ~ 85°C |
| FN8000059 | Diodes晶振 | SaRonix-eCera™ FN | 80MHz | ±50ppm | -20°C ~ 70°C |
| FN8330020 | Diodes晶振 | SaRonix-eCera™ FN | 83.33MHz | ±50ppm | -40°C ~ 85°C |
| FN8500004 | Diodes晶振 | SaRonix-eCera™ FN | 85MHz | ±50ppm | -20°C ~ 70°C |
| FN9000013 | Diodes晶振 | SaRonix-eCera™ FN | 90MHz | ±50ppm | -20°C ~ 70°C |
| FN9600006 | Diodes晶振 | SaRonix-eCera™ FN | 96MHz | ±25ppm | -20°C ~ 70°C |
| FN9830014 | Diodes晶振 | SaRonix-eCera™ FN | 98.304MHz | ±50ppm | -20°C ~ 70°C |
| FNA000068 | Diodes晶振 | SaRonix-eCera™ FN | 100MHz | ±50ppm | -40°C ~ 85°C |
| FNA000070 | Diodes晶振 | SaRonix-eCera™ FN | 100MHz | ±50ppm | -20°C ~ 70°C |
| FNA000071 | Diodes晶振 | SaRonix-eCera™ FN | 100MHz | ±50ppm | -40°C ~ 85°C |
| FNA000072 | Diodes晶振 | SaRonix-eCera™ FN | 100MHz | ±50ppm | -20°C ~ 70°C |
| FNA000073 | Diodes晶振 | SaRonix-eCera™ FN | 100MHz | ±25ppm | -20°C ~ 70°C |
| FNA620047 | Diodes晶振 | SaRonix-eCera™ FN | 106.25MHz | ±50ppm | -20°C ~ 70°C |
| FNA620048 | Diodes晶振 | SaRonix-eCera™ FN | 106.25MHz | ±25ppm | -20°C ~ 70°C |
| FNA620049 | Diodes晶振 | SaRonix-eCera™ FN | 106.25MHz | ±50ppm | -40°C ~ 85°C |
| FNA620050 | Diodes晶振 | SaRonix-eCera™ FN | 106.25MHz | ±25ppm | -20°C ~ 70°C |
| FNA620052 | Diodes晶振 | SaRonix-eCera™ FN | 106.25MHz | ±50ppm | -40°C ~ 85°C |
| FNA800007 | Diodes晶振 | SaRonix-eCera™ FN | 108MHz | ±50ppm | -20°C ~ 70°C |
| FNA800008 | Diodes晶振 | SaRonix-eCera™ FN | 108MHz | ±25ppm | -20°C ~ 70°C |
| FNC500106 | Diodes晶振 | SaRonix-eCera™ FN | 125MHz | ±25ppm | -20°C ~ 70°C |
| FNC500126 | Diodes晶振 | SaRonix-eCera™ FN | 125.001MHz | ±25ppm | -20°C ~ 70°C |

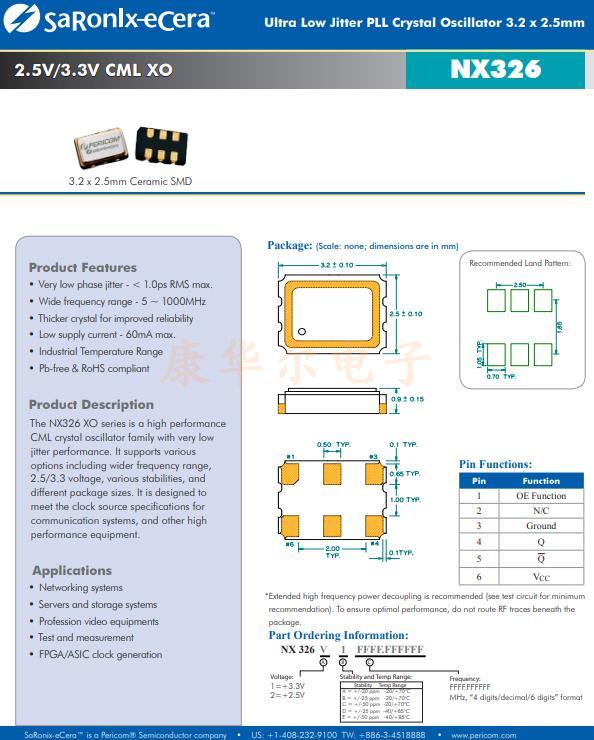

亚陶发布了编码NX3261E0125.000000,NX326 XO系列是一款高性能产品进口石英晶体振荡器,CML晶体振荡器家族用的很低抖动性能。它支持各种选择包括更宽的频率范围，2.5/3.3电压，各种稳定性不同的包装尺寸。它被设计成满足时钟源规格通信系统等高设备性能。产品特性:极低相位抖动- < 1.0ps RMS max。宽频率范围- 5 ~ 1000MHz,更厚的晶体，提高可靠性,低供电电流- 60mA最大。工业温度范围,无铅和RoHS合规.
应用程序:网络系统,服务器和存储系统,专业视频设备,测试和测量,FPGA/ASIC时钟生成.
